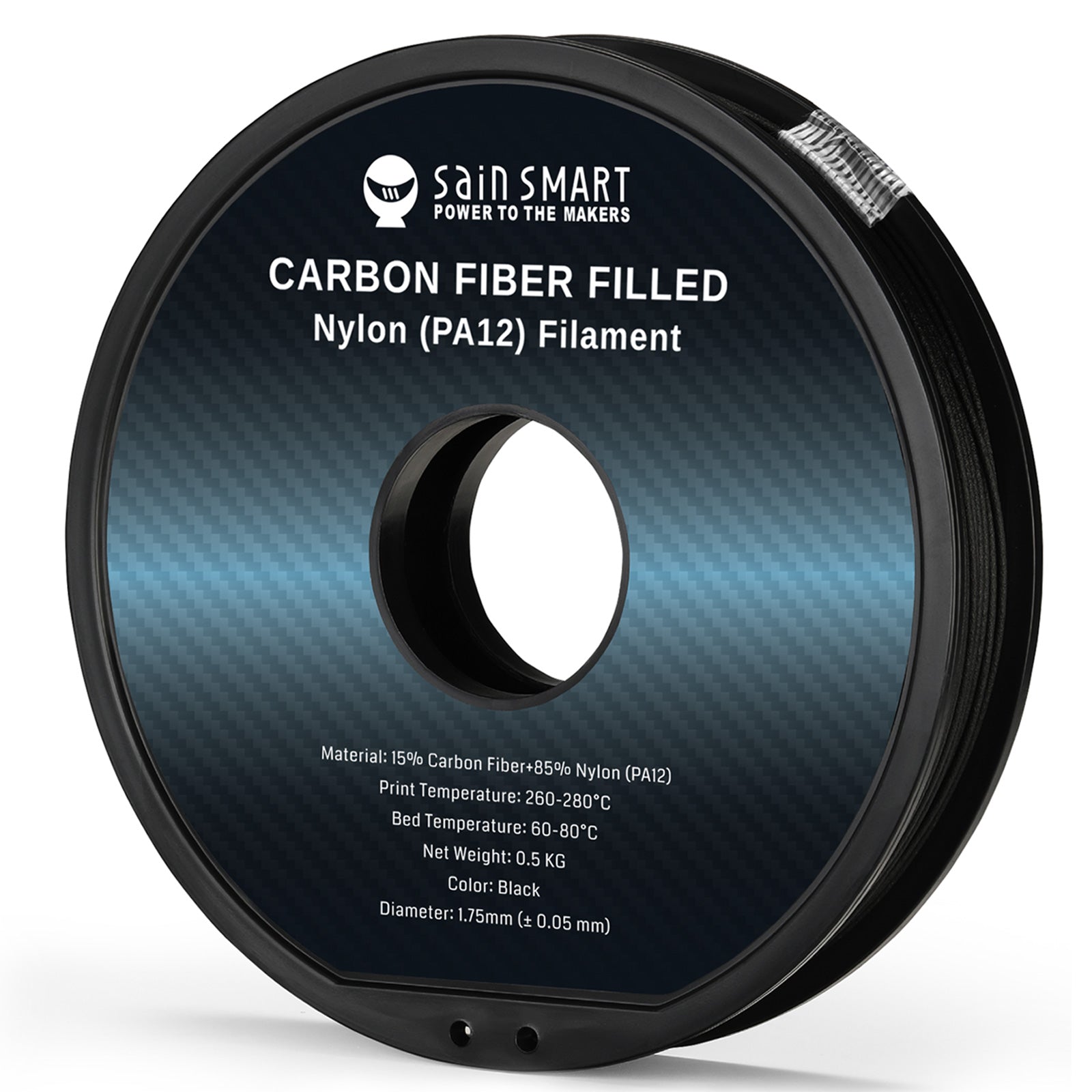

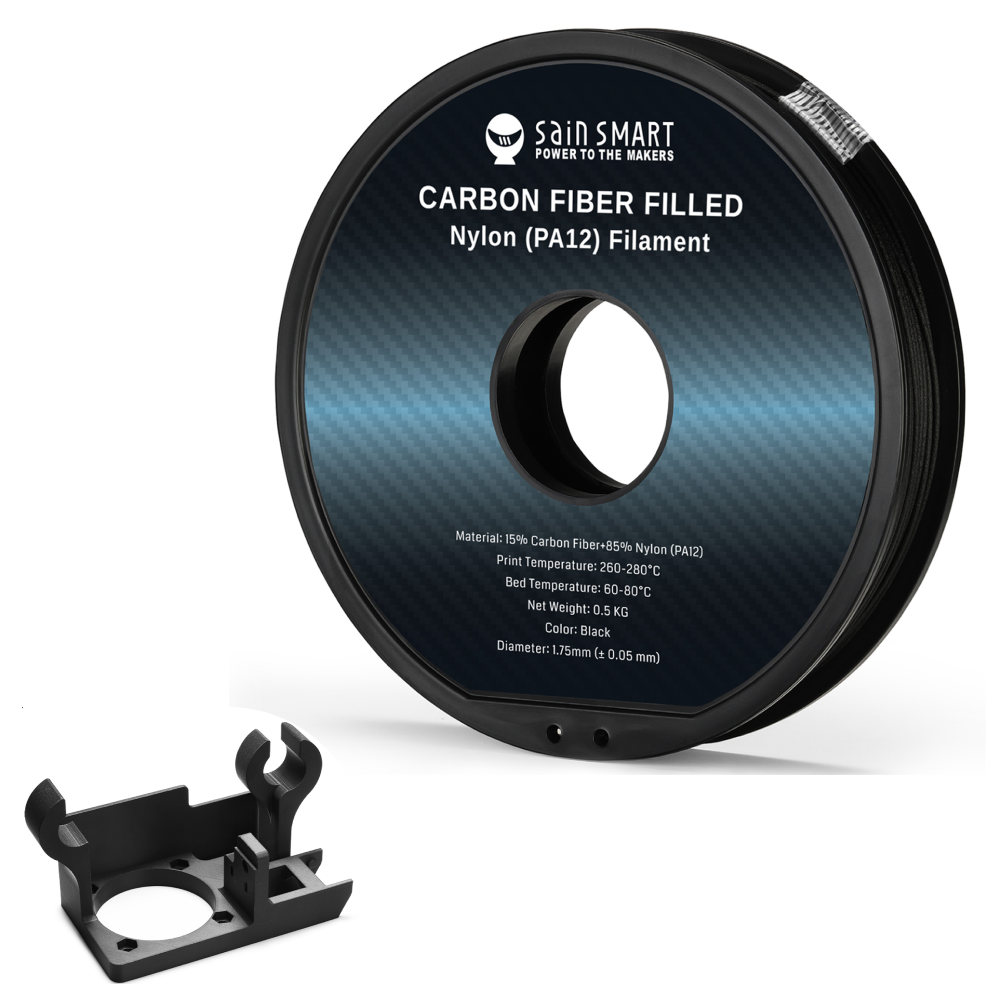

ePA12-CF 1.75mm Carbon Fiber Nylon Filament, 0.5kg, Accuracy +/- 0.05 mm, Black
Certified by SainSmart.com
ePA12-CF 1.75mm Carbon Fiber Nylon Filament, 0.5kg, Accuracy +/- 0.05 mm, Black
Was:
$59.99
Was:
$64.99
Sale price
$59.99
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
×
Condition Specifications
The condition refers to the visual appearance of the device. Each device is thoroughly inspected and found to be in perfect working condition.
-
Excellent
Excellent condition devices will only have minimal wear that is hardly noticeable. -
Great
Great condition will show light signs of wear including scratches, scuffs, or small dings. Wear will be minimal but may be visible from an arm’s length distance. -
Good
Good condition with average signs of wear including scratches, scuffs, or dings that will be visible within an arm’s length distance. -
Fair
Fair condition with heavy signs of wear may include scratches, scuffs, screen delamination, dings, or dents that will be visible from more than an arm’s length distance. -
Support
Please note we cannot send individual pictures of machines. Feel free to message us at support@techable.com with any questions. -
Warranty
Each device comes with a 90-Day warranty on all parts. Additional warranty options are provided by SafeTech Warranty.
Nylon PA 12 is commonly used in 3D Printing for prototyping and producing end-use products because of its excellent
mechanical properties and also provides reduced costs and time while having great flexibility in customization.

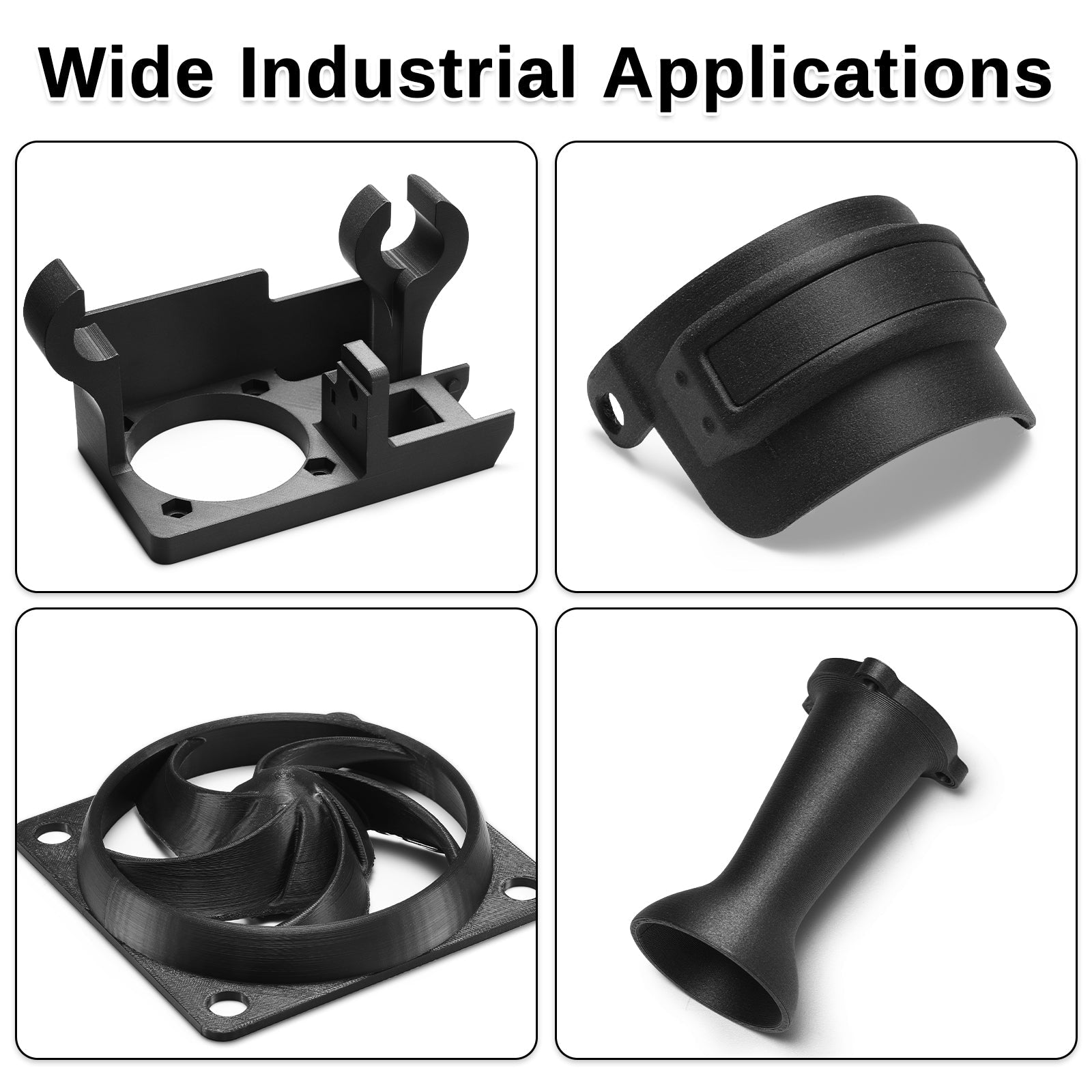

With the added 15% carbon fiber, It's chemical resistance and mechanical properties are further improved, and also brings better printability, dimensional accuracy and lower shrinkage. This high performance PA12+CF combo is widely used in robots, drones, and automotive and aviation industries.
As an abrasive material, the ePA12+CF Filament can wear out and clog stock 0.4mm brass nozzles rapidly, hardened steel nozzles with larger diameters (0.6mm or more) are highly recommended for printing this filament. For better finish and layer adhesion, we would also suggest drying it before printing and creating a constant ambient temperature with a filament dryer or an enclosure. Print Temp: 280°C - 300°C, Bed Temp: 45°C - 60°C, Fan Speed: 0%, Print Speed: 40-100mm/s.
With the added 15% carbon fiber, It's chemical resistance and mechanical properties are further improved, and also brings better printability, dimensional accuracy and lower shrinkage. This high performance PA12+CF combo is widely used in robots, drones, and automotive and aviation industries.
As an abrasive material, the ePA12+CF Filament can wear out and clog stock 0.4mm brass nozzles rapidly, hardened steel nozzles with larger diameters (0.6mm or more) are highly recommended for printing this filament. For better finish and layer adhesion, we would also suggest drying it before printing and creating a constant ambient temperature with a filament dryer or an enclosure. Print Temp: 280°C - 300°C, Bed Temp: 45°C - 60°C, Fan Speed: 0%, Print Speed: 40-100mm/s.
Excellent Performance

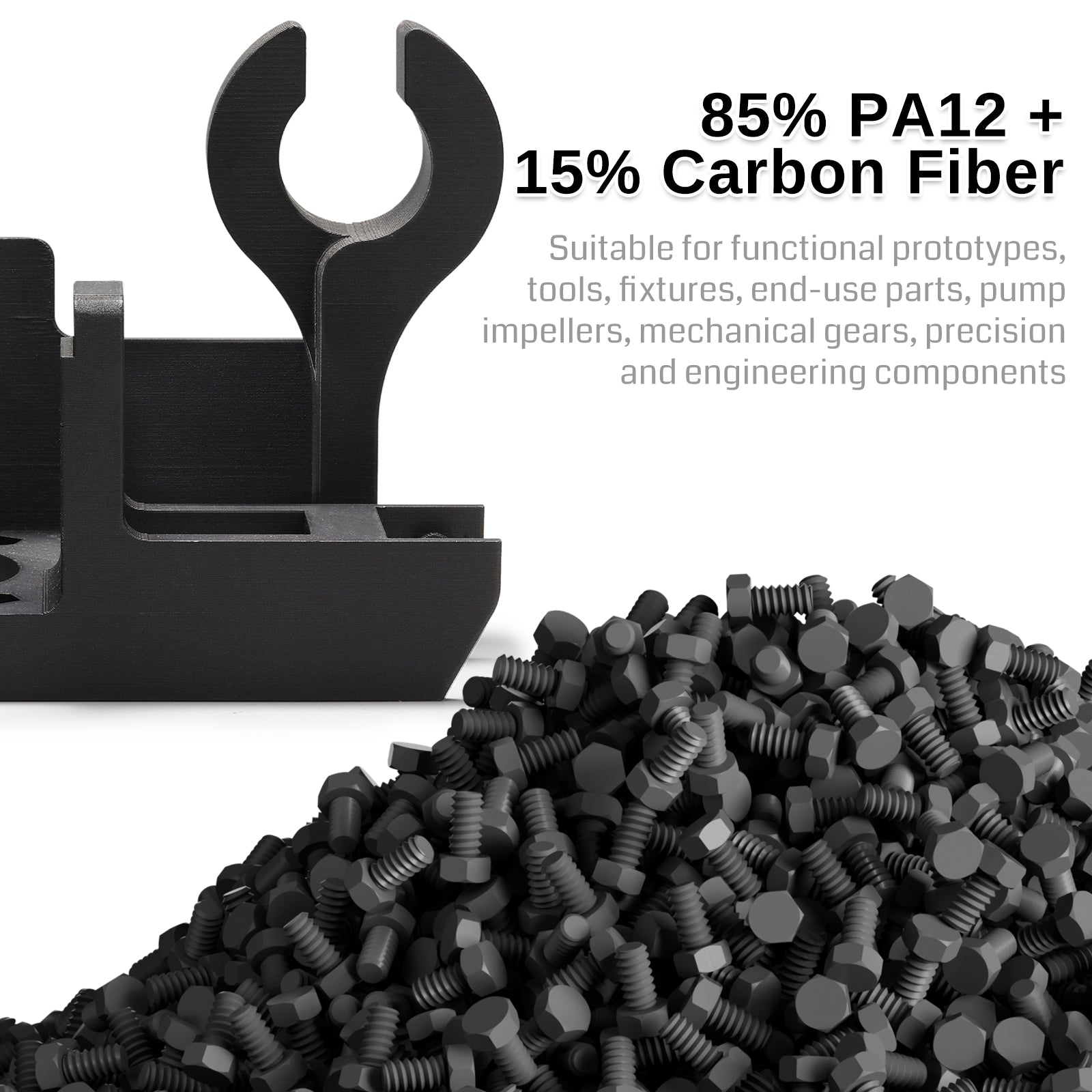

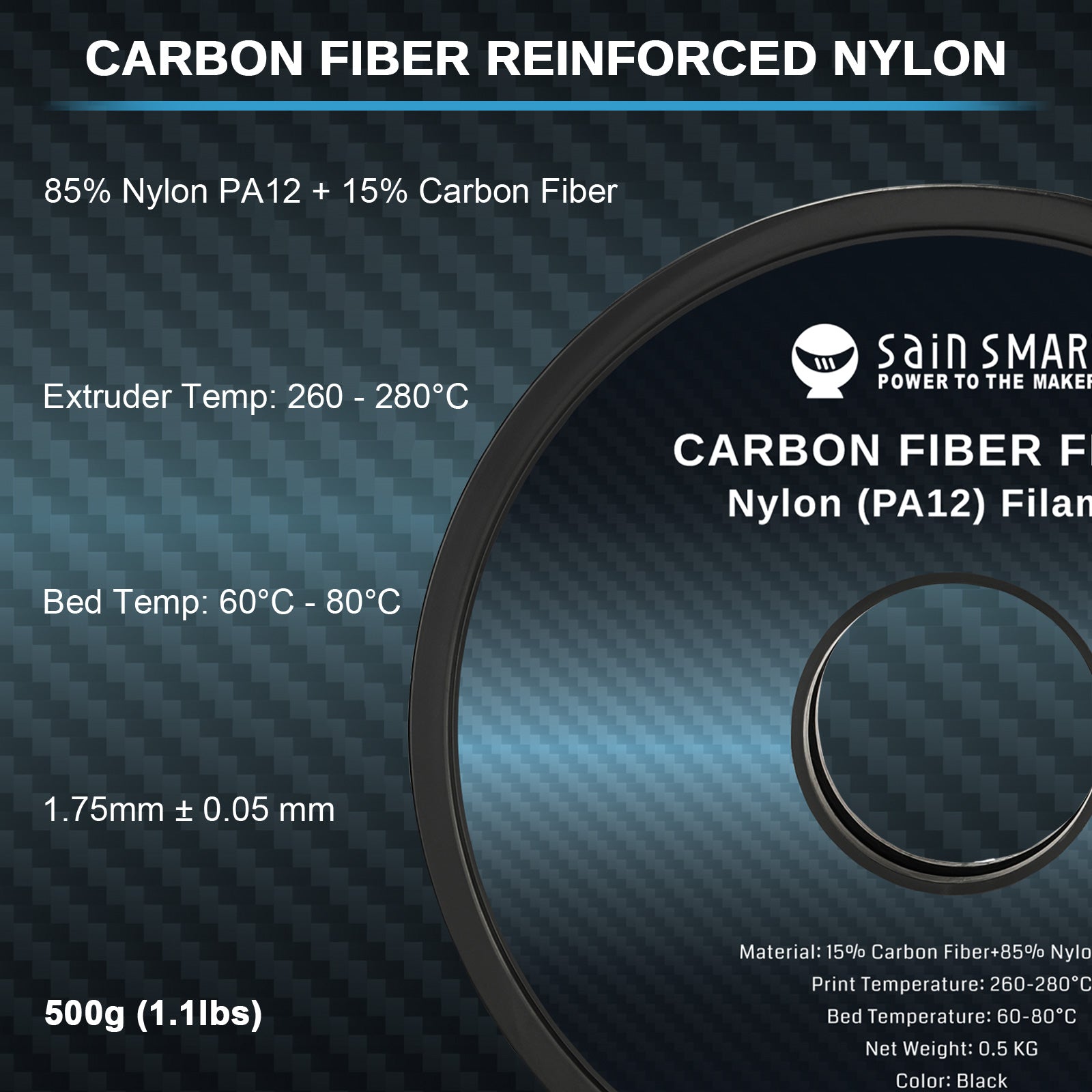

- 85% PA12 + 15% Carbon Fiber Upgraded Formulation

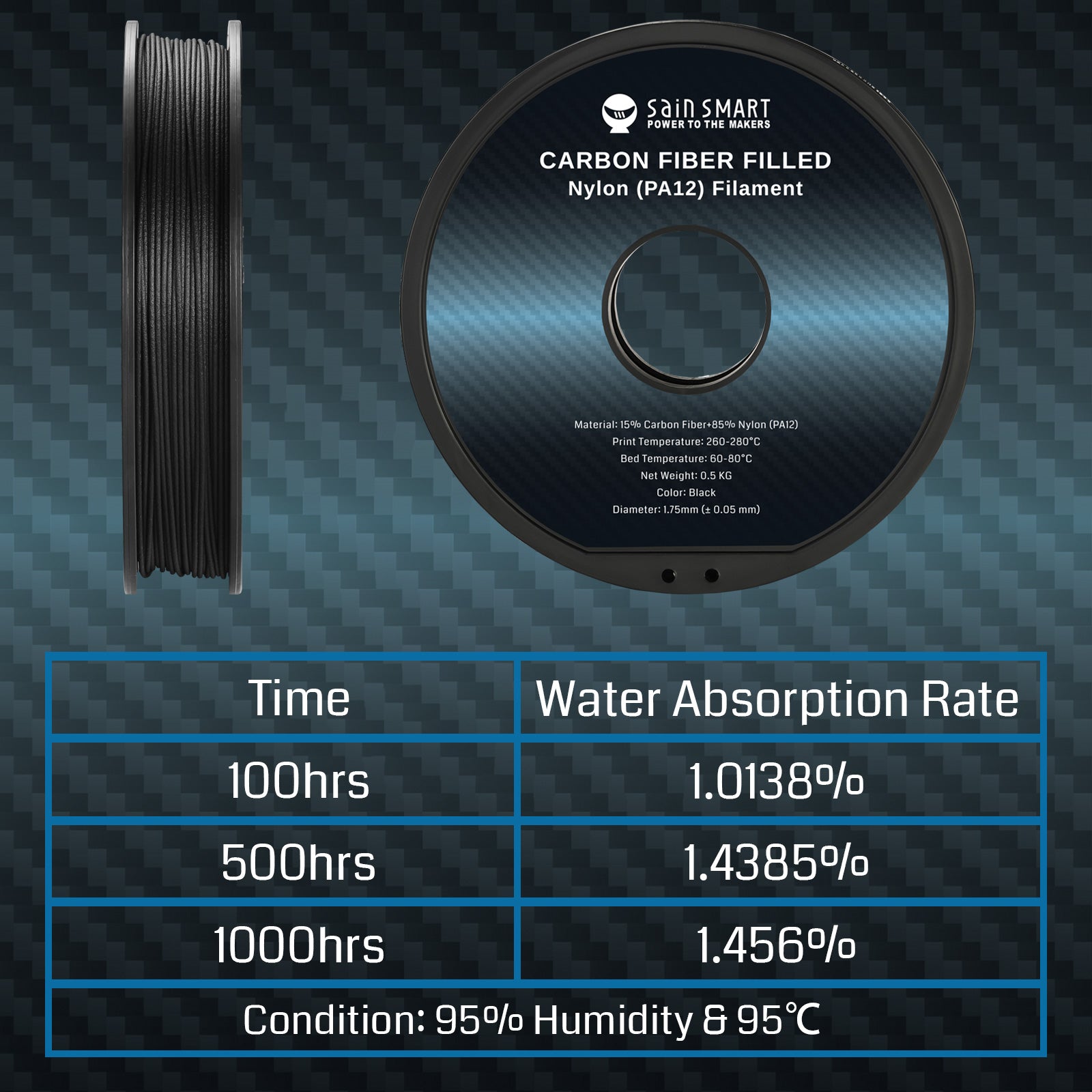

- Low moisture absorption, suitable for use in wet or humid environments
- Increased strength, stiffness, and wear resistance

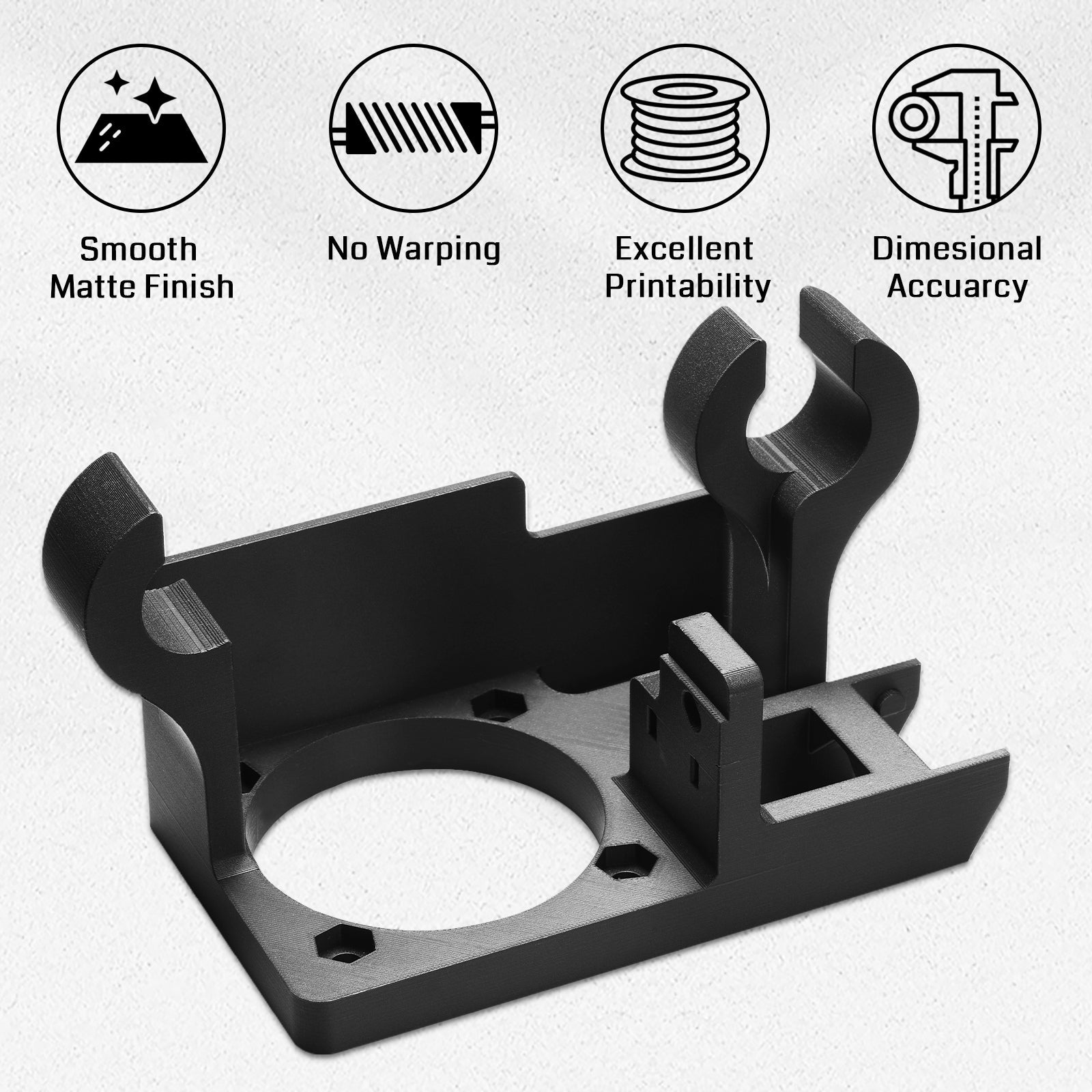

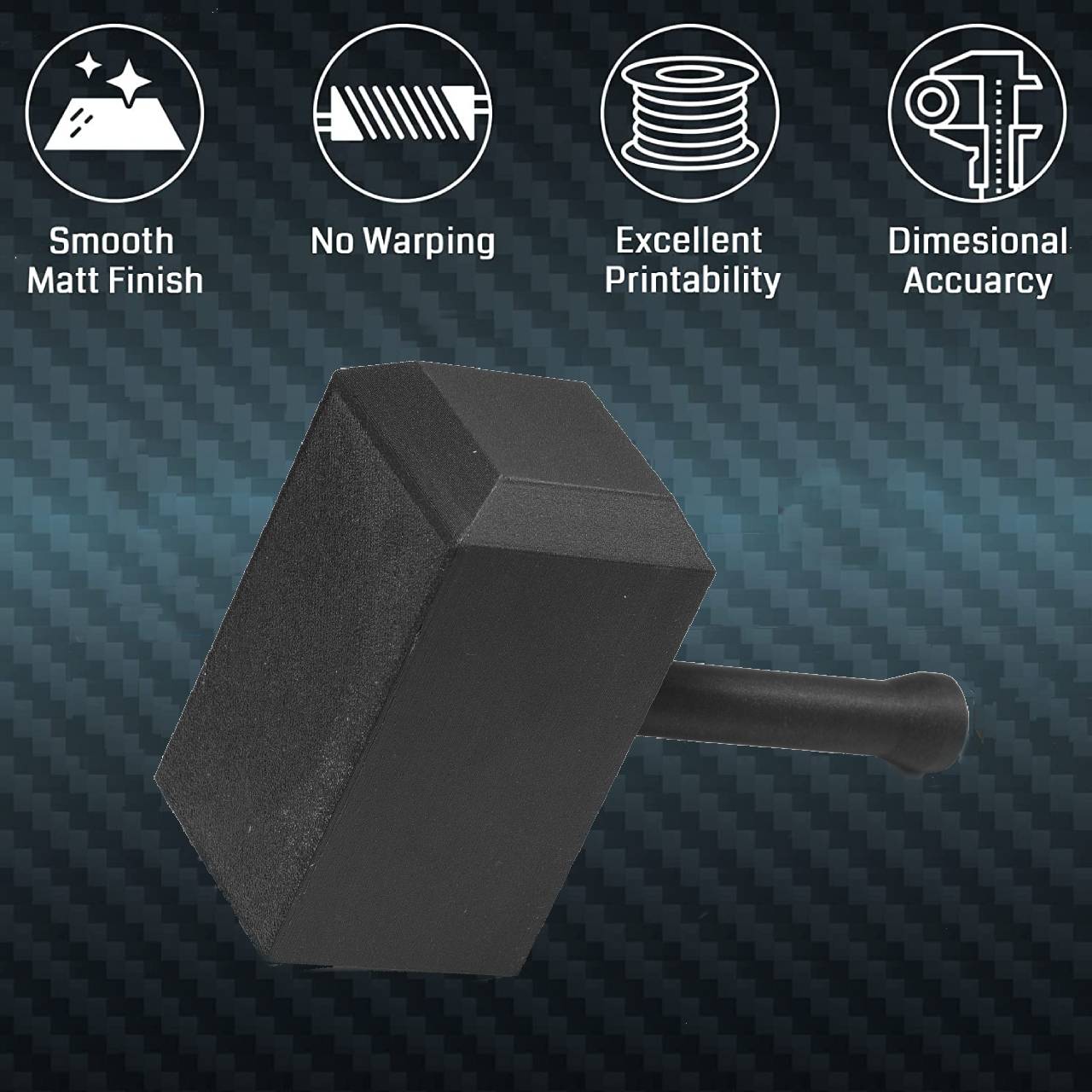

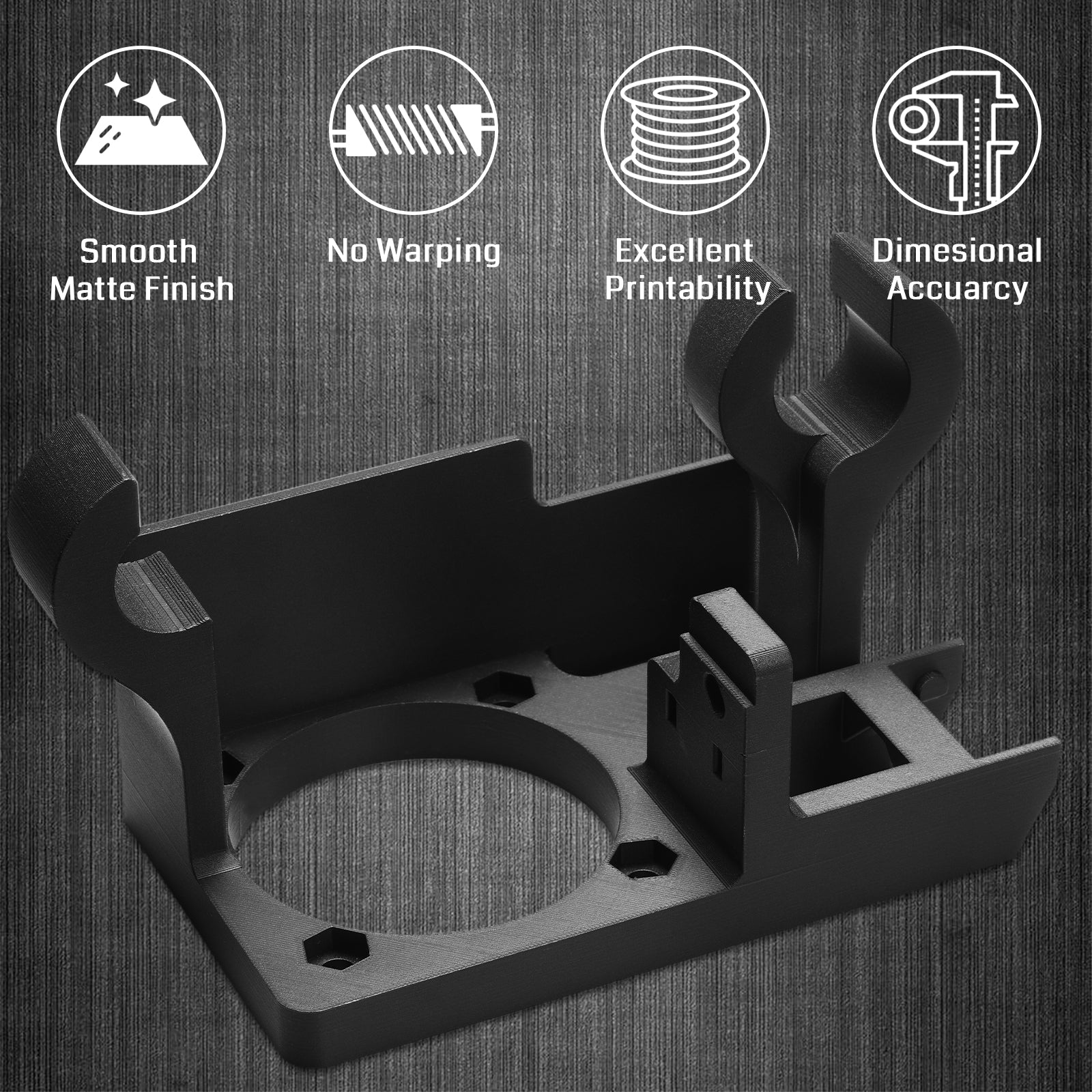

- Excellent printability, no warping, good layer adhesion, low shrinkage, and smooth print surface
- Great dimensional stability and accuracy
Printing Tips:
- Recommended extruder temperature: 280°C - 300°C (536°F-572°F)
- Recommended platform temperature: 45°C - 60°C (113°F-140°F)
- Printing speed: 40 to 100mm/s
- Fan Speed: 0%
- Nozzle: Stainless steel nozzle and larger nozzle (0.6mm or larger)
Material Property
- Melt Flow Index (g/10min) 8.91 (270℃/2.16kg)
- Density 1.24g/cm3IZOD
- Impact Strength(kJ/㎡） 11.33kJ/m2
- Tensile Strength(MPa) 108.18 MPa
- Elongation at Break(%) 9.02%
- Flexural Strength (MPa) 116.58MPa
- Flexural Modulus(MPa) 3335MPa
- Heat Distortion Temp 94.1℃
- Continuous Service Temp 120℃
- Maximum (short term)
- Use Temp 160℃
