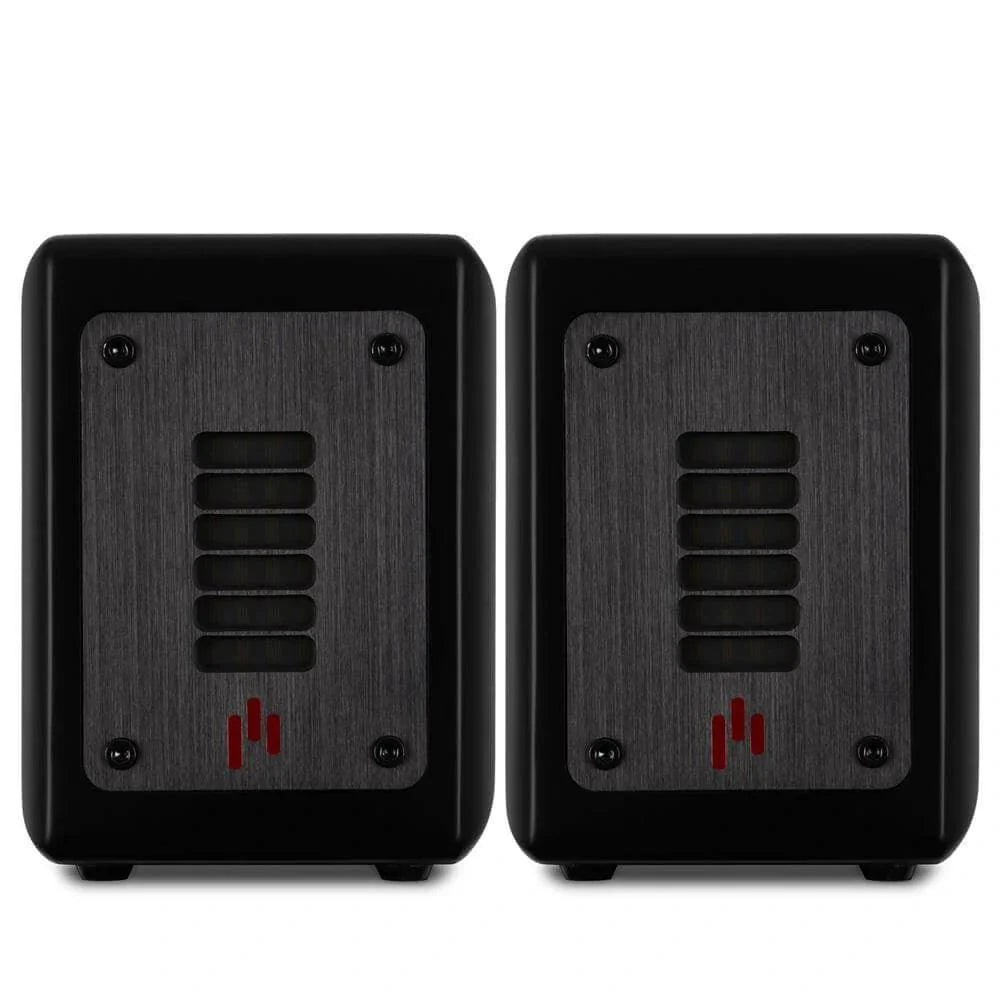

PST Planar-Magnetic Ribbon Super Tweeter Speaker Pair MKII
Was: $399.00
Was: $399.00 Sale price $399.00

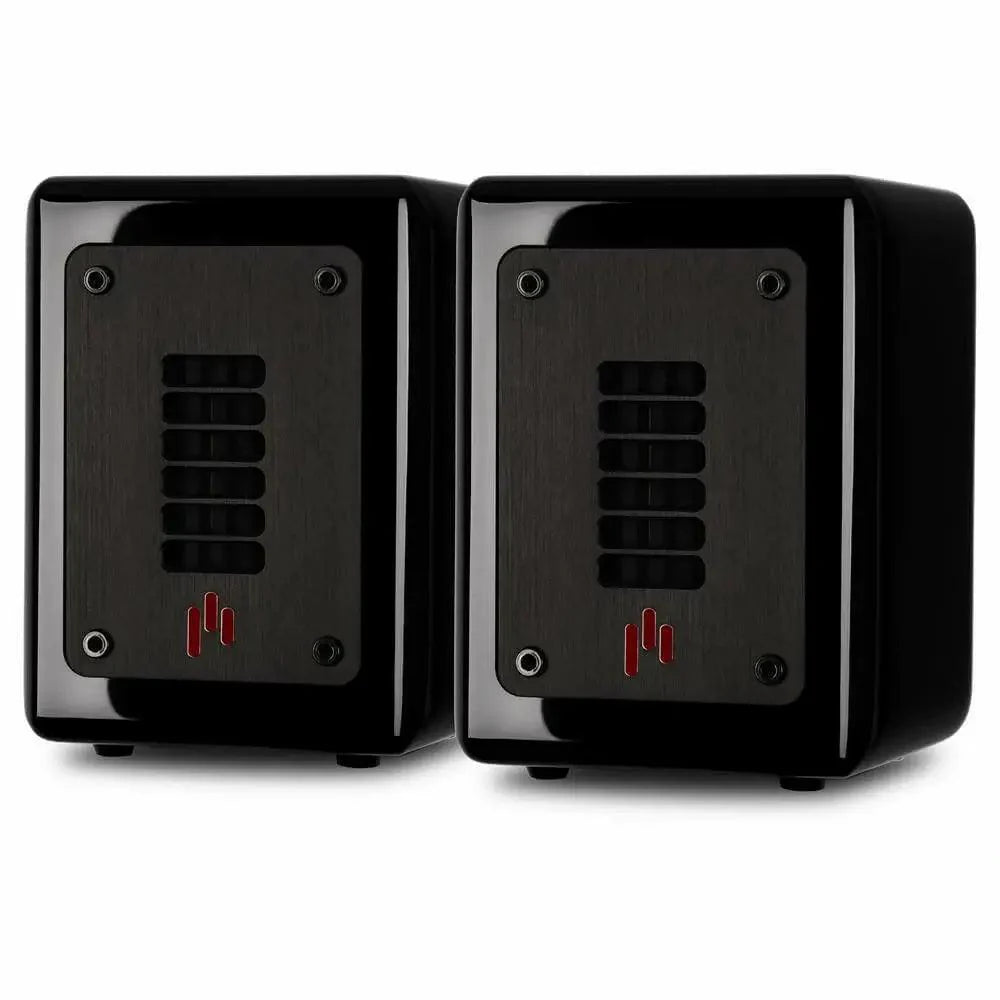

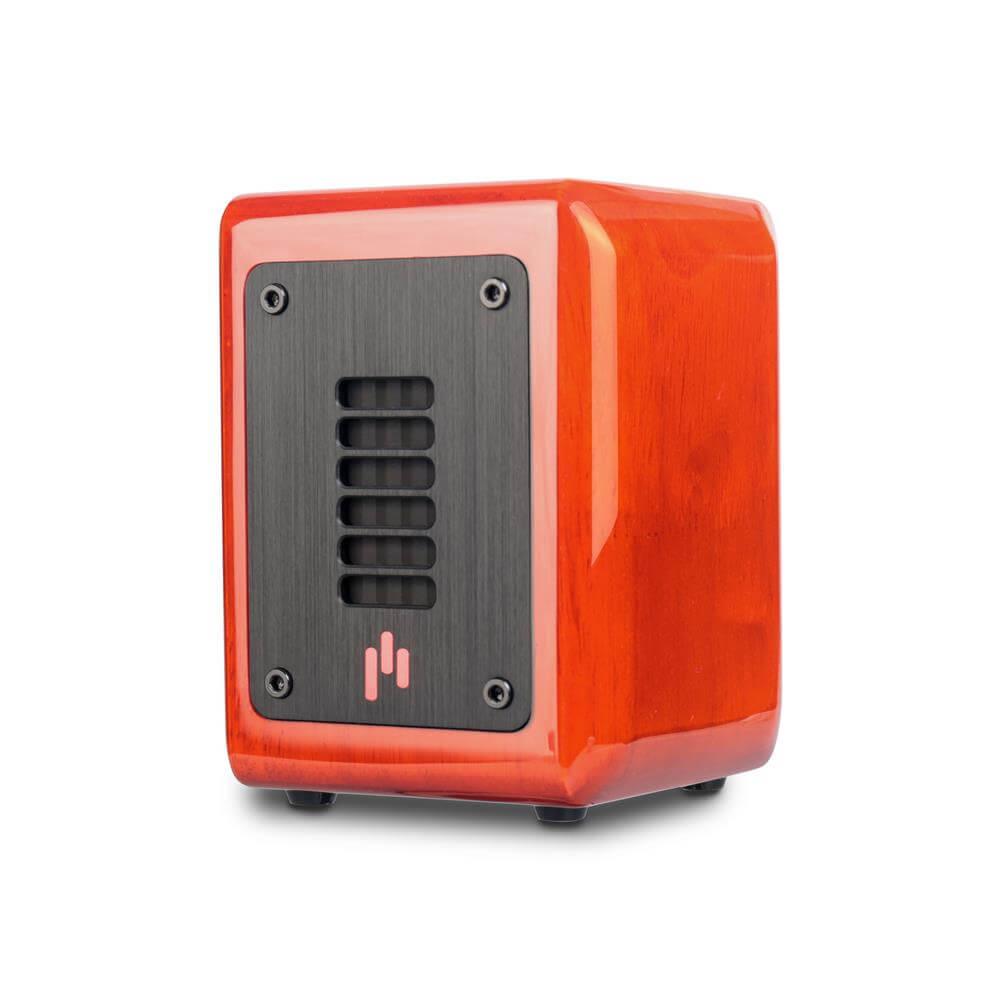

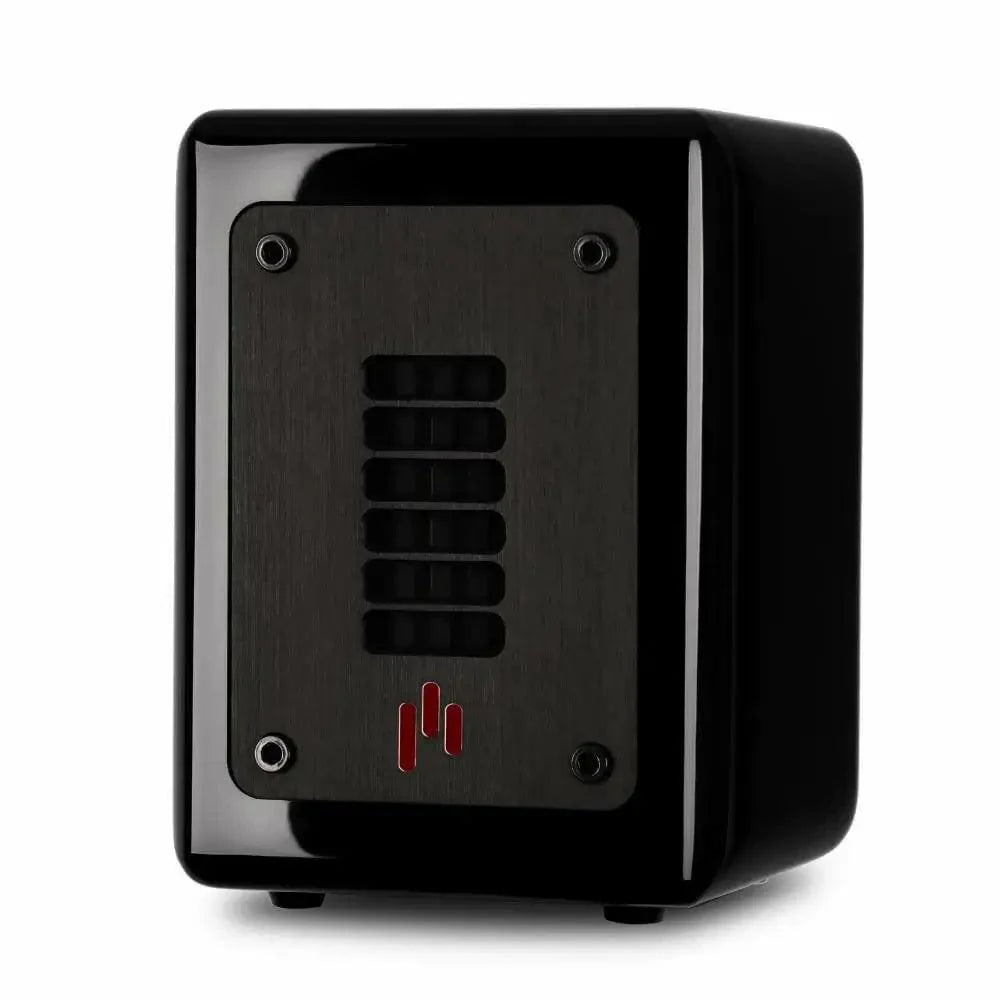

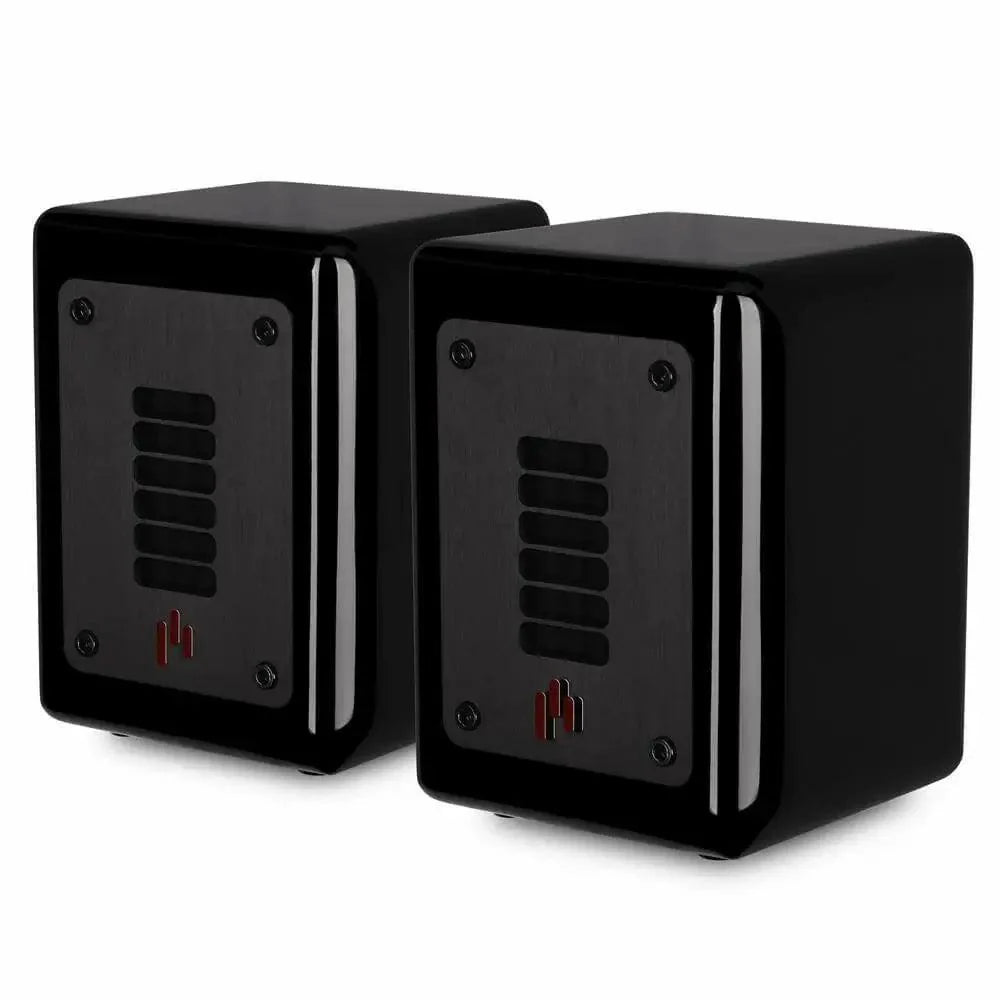

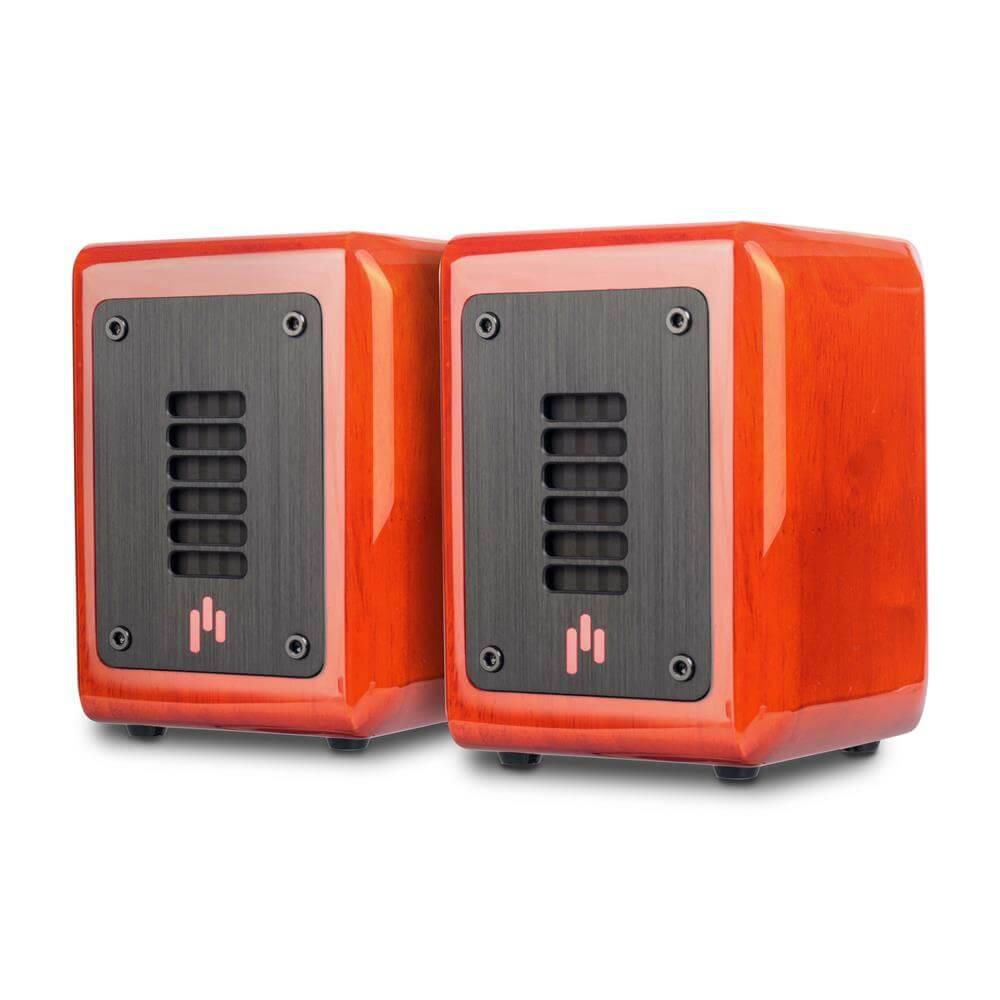

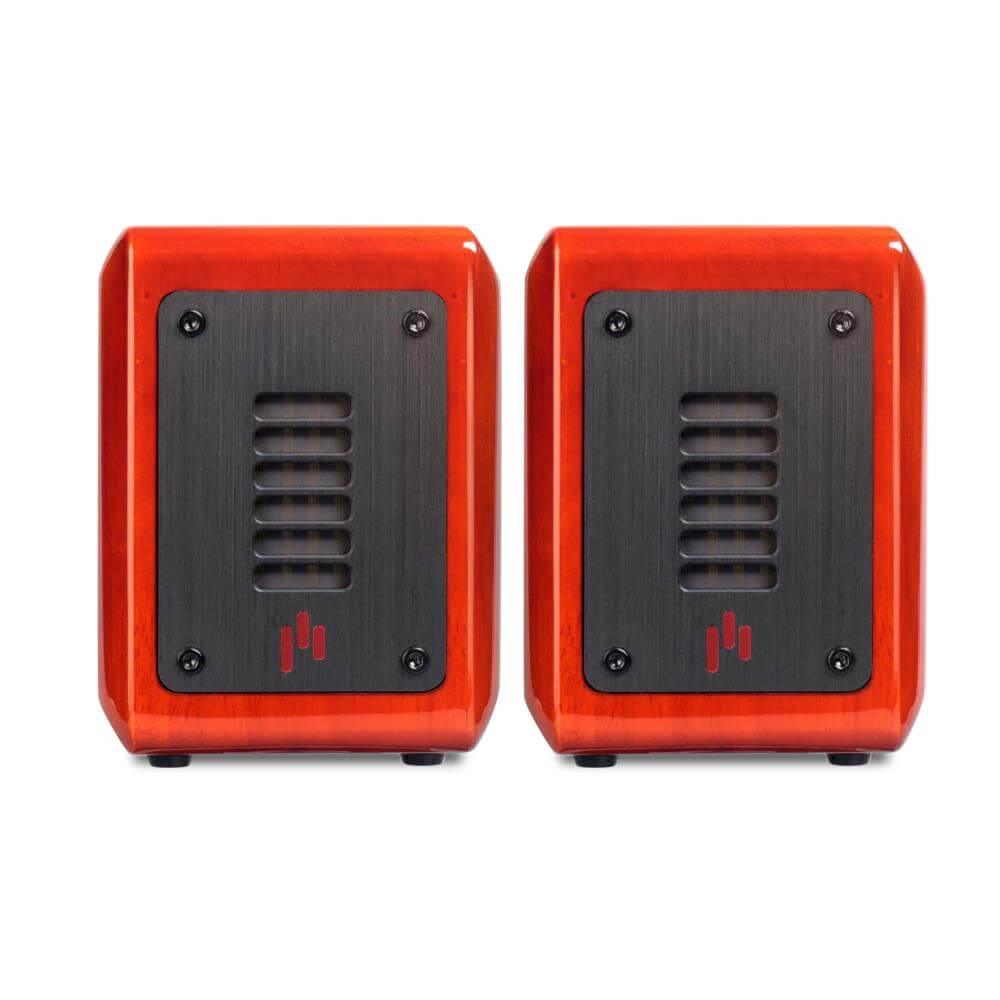

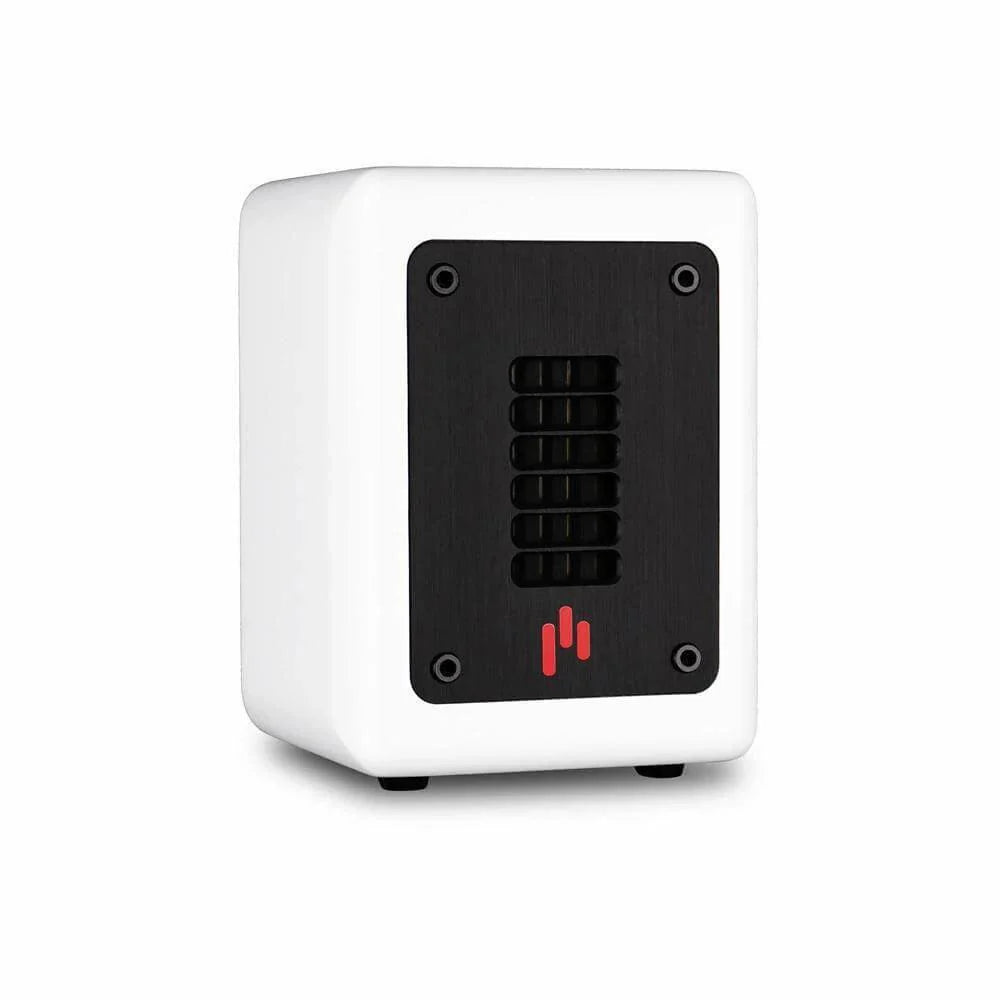

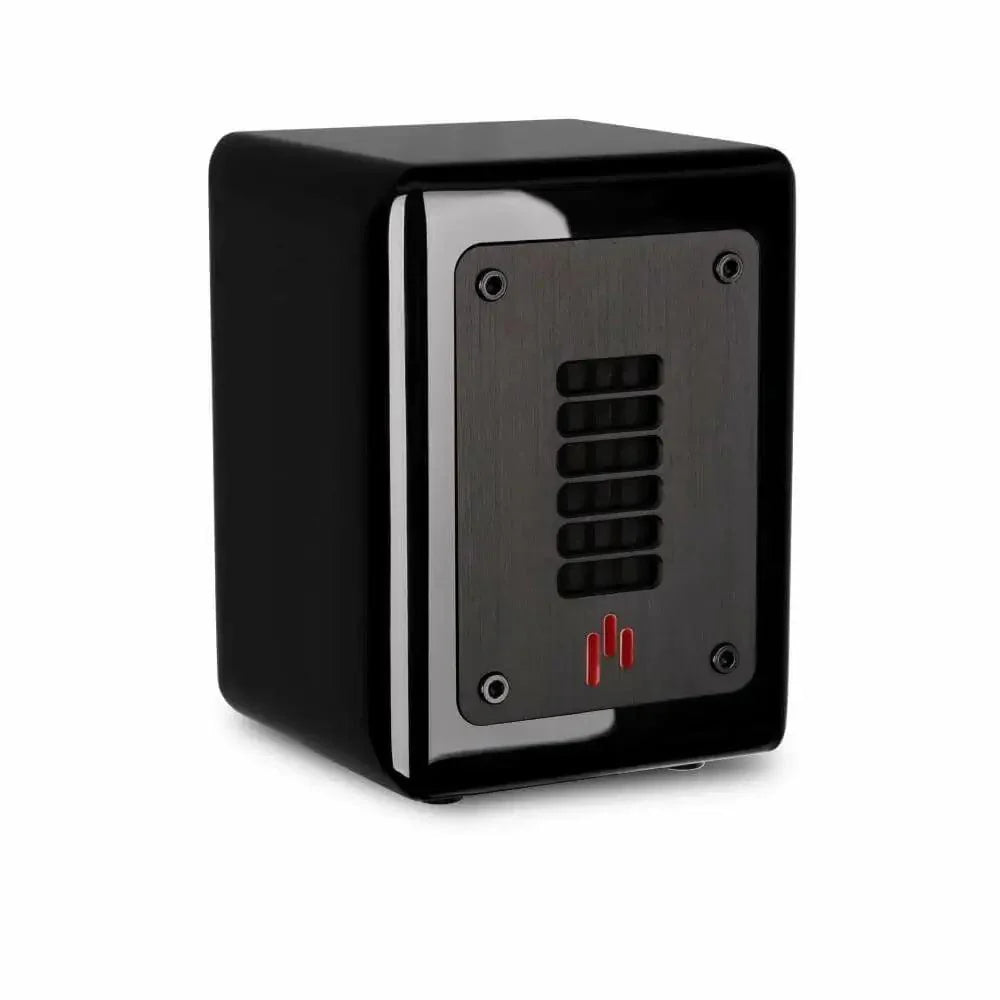

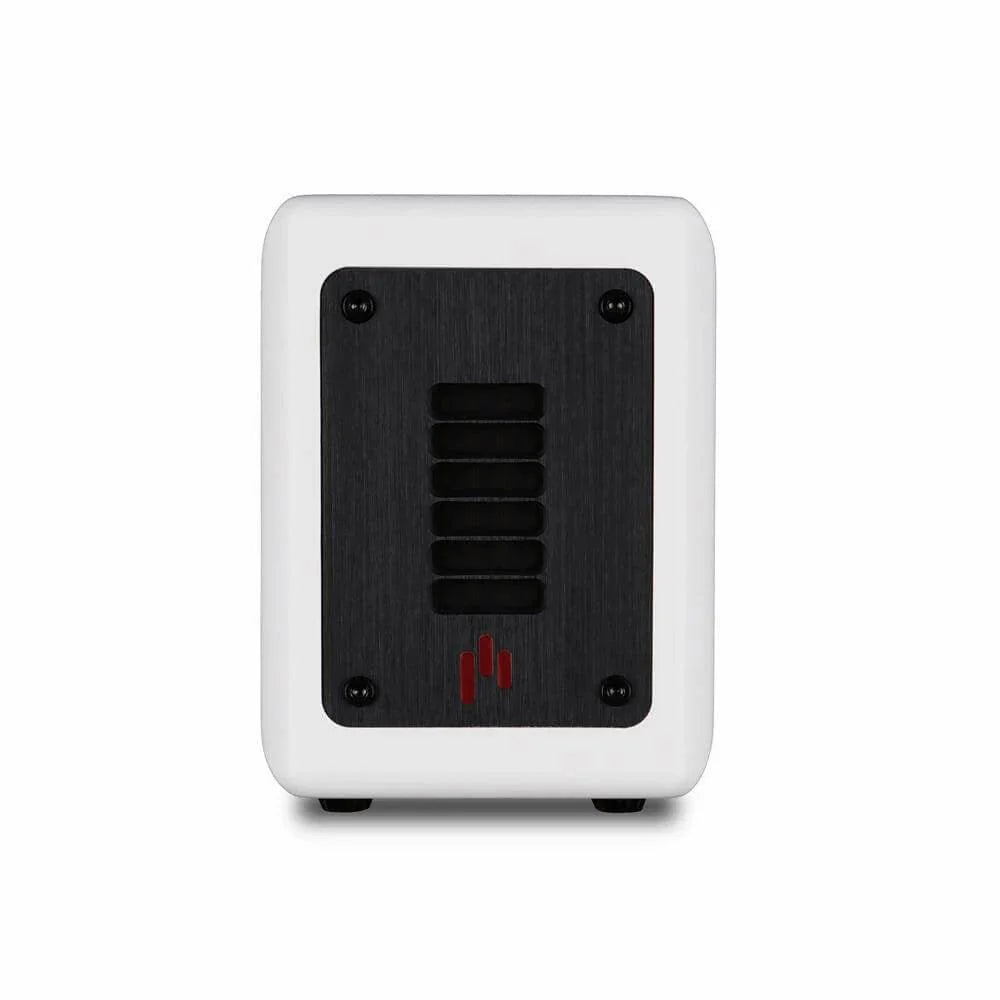

Aperion Audio PST Planar-Magnetic Ribbon Super Tweeter Speaker Pair MKII


aperion-planar-ribbon-super-tweeter-gloss-black


This Super Tweeter is a planar-magnetic, flat-ribbon tweeter consisting of Kapton film with a pattern of aluminum conductors. The crossover network used non-inductive resistors, and use film semiconductor capacitors. A linear phase response provides time coherent sound reproduction, allowing for an accurate sound stage.

What is a Super Tweeter speaker? Put simply, it’s an additional tweeter unit which covers a wide and extended high-frequency response, beyond that of your existing loudspeaker’s integrated tweeters.

Many loud speaker systems have poor high frequency performance. A Super Tweeter specializes in ultra-high frequencies and is used in conjunction with a bookshelf or tower speaker. Its purpose is to create a more realistic sound field, often characterized as "airiness," that enhances the listening experience. Super Tweeters are sometimes found in high fidelity speaker systems and home theater systems. They are used to supplement the sound of tweeters by reproducing frequencies which the existing tweeter may produce only with a narrow polar output, or perhaps with distortion. A Super Tweeter speaker provides auxiliary high frequency effect, detail, density and texture that can enhance your existing system’s sound field with width, depth and enhanced timbre.

Aperion Super Tweeter is generally intended to respond well into ultra-high frequencies over 20 kHz, the commonly accepted upper frequency limit of human hearing. Super Tweeters are ideal for taking advantage extended-range audio formats such as vinyl, SACD, FLAC, UHD Bluray and other high-fidelity products.



Specification

Frequency Response: 8 Khz-40 Khz
Impedance: 6 Ohms
Sensitivity: 94 dB
Crossover Points: 8K, 10K, 12K, 14K, 16K & off
Treble Adjust: 0,-1dB,-2dB,-3dB,-4dB,-5dB
Crossover Slope: 12 dB/octave
Recommended Power: 10-100 Watts
Tweeter: APERION Planar-magnetic "Flat Ribbon" Tweeter
Product Weight: 1.65 lbs/0.75 Kg per each
Product Dimensions: 5.27" x 4" x 5" / 134 x 102 x 127 (HxWxD)
Placement Location: Add on top of speakers
Shipping Weight: 4.5 lbs/ 2 Kg per pair
Shipping Dimensions: 7" x 12" x 8"/180 x 302 x 206mm (LxWxH)


Features

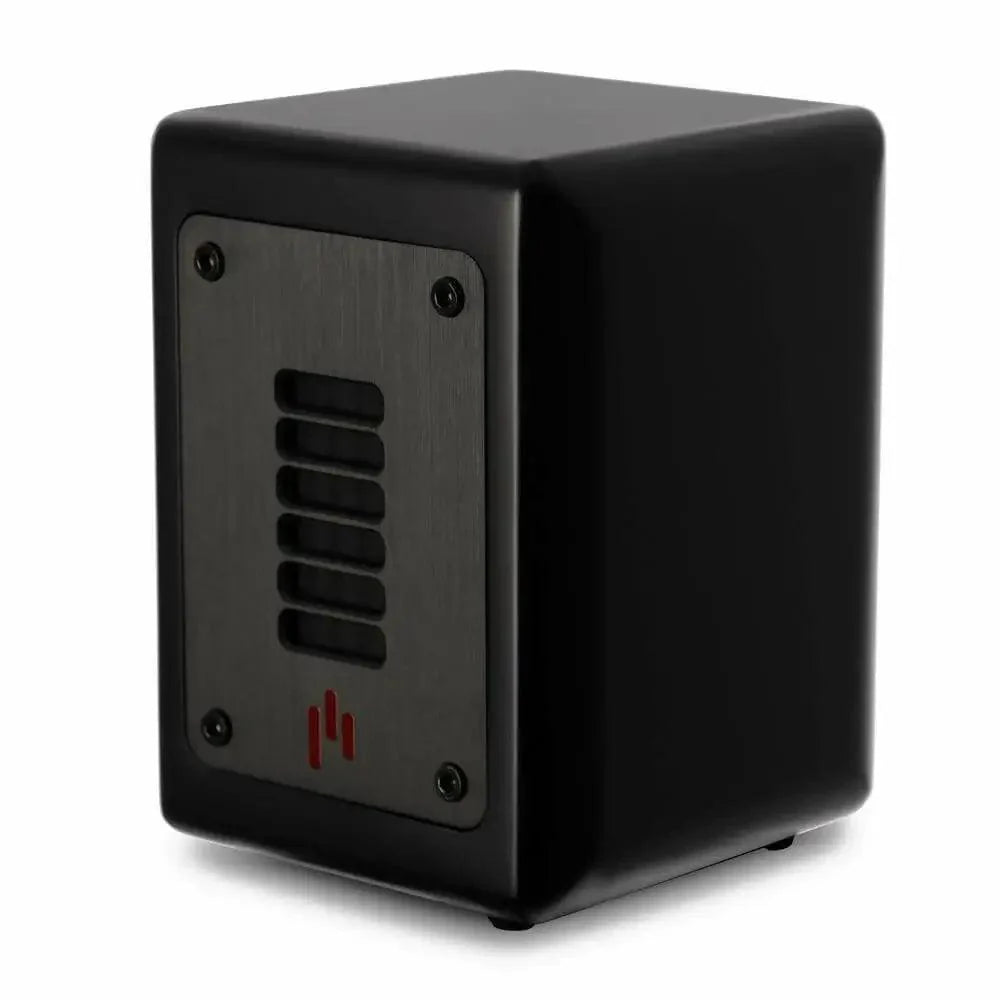

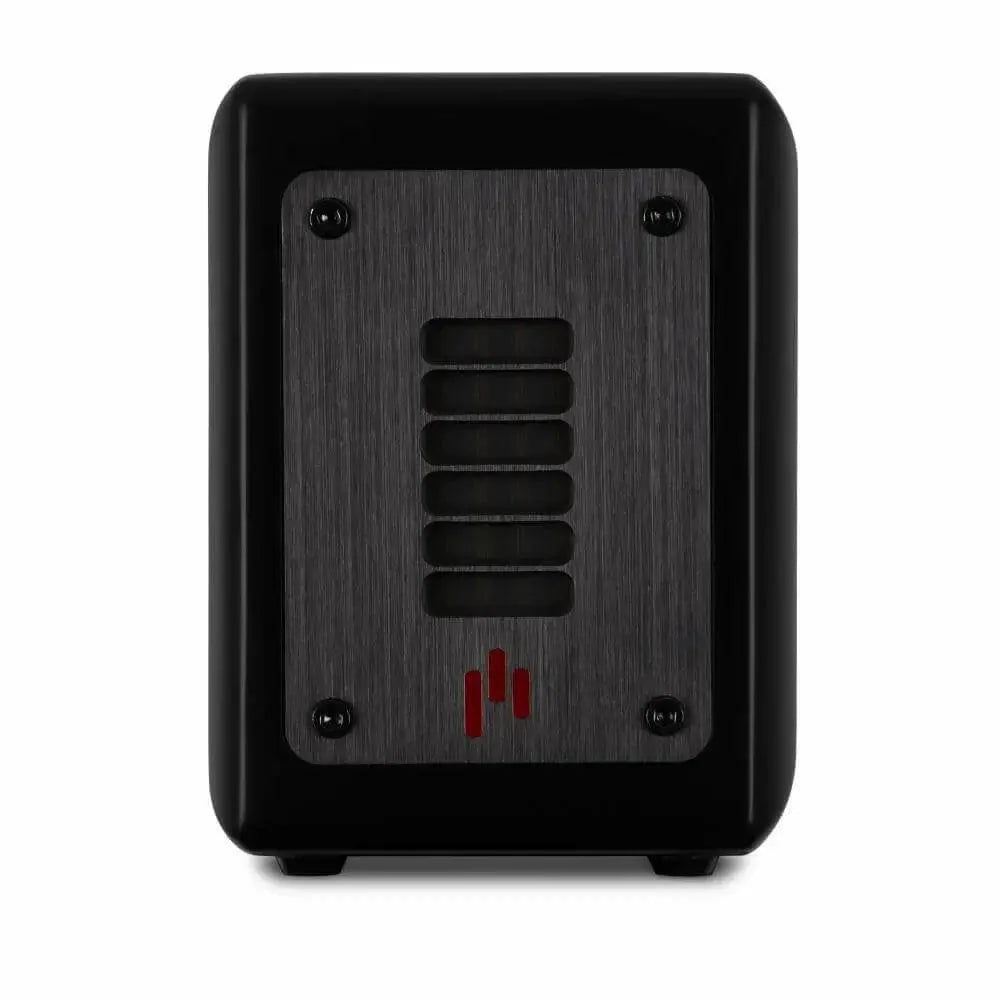

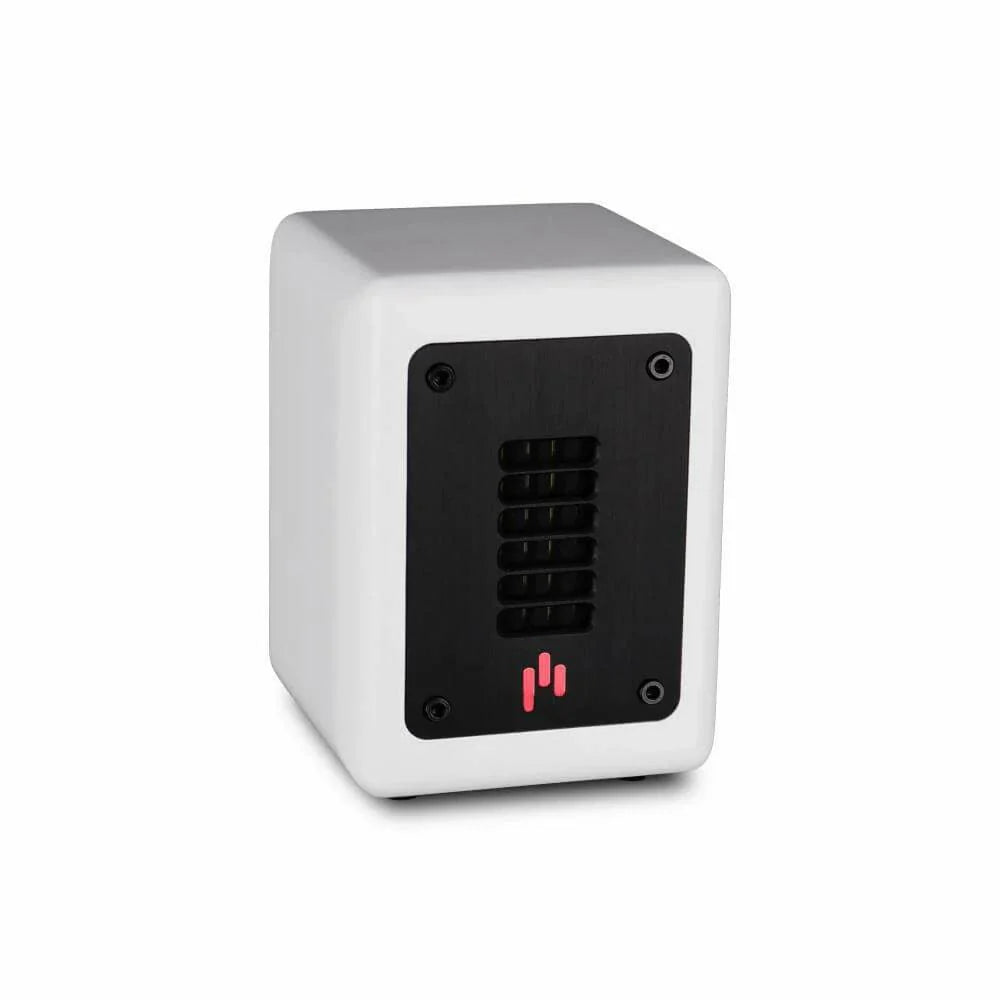

Extended High Frequency Flat-Ribbon Tweeter

aperion-planar-ribbon-super-tweeter

This is not your normal tweeter. While most tweeters max out at around 20K, the APERION® Planar Ribbon Super Tweeter extends another 20,000+ Hertz above that.

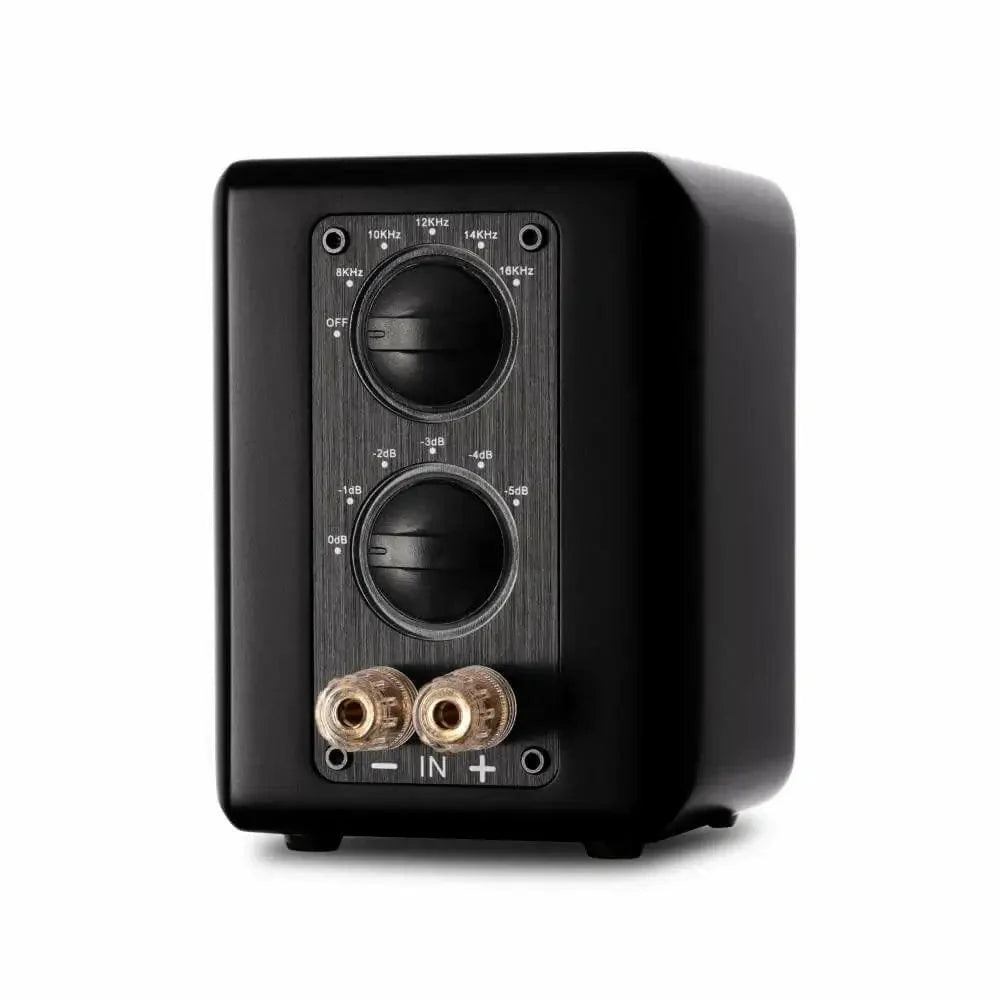

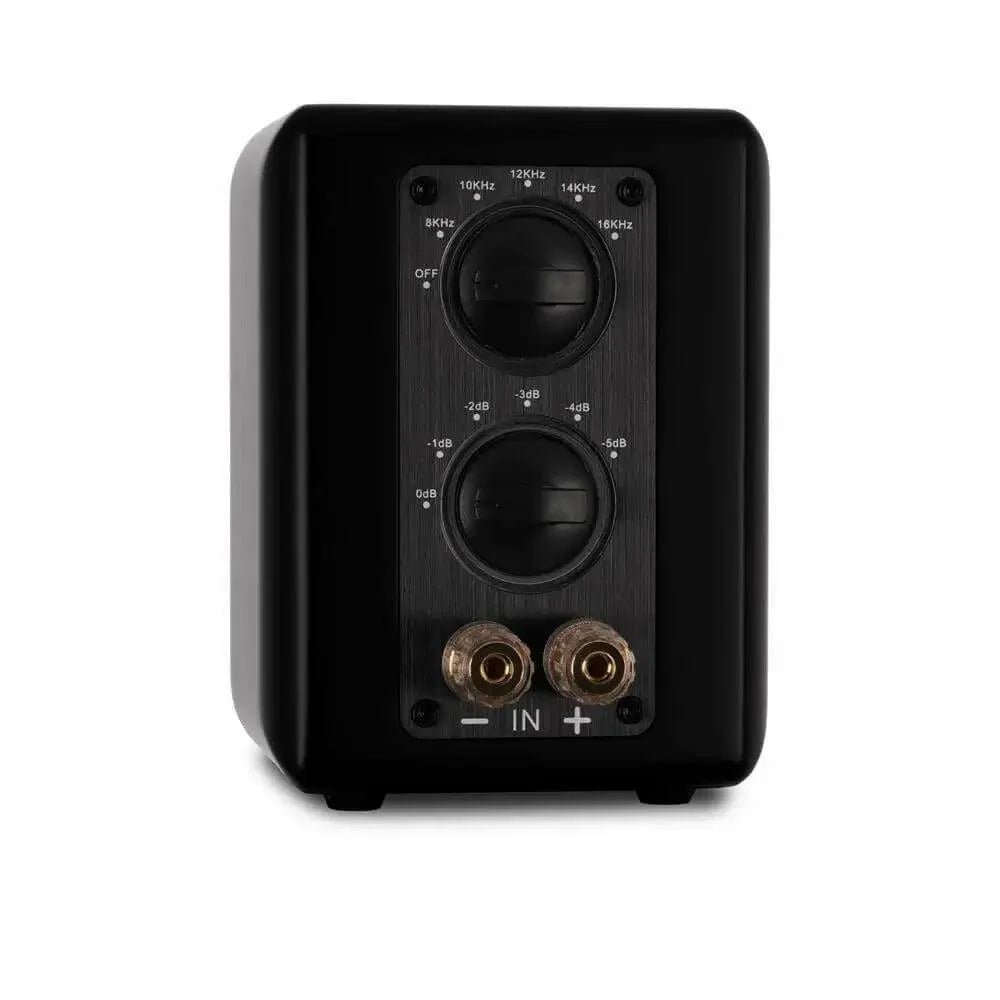

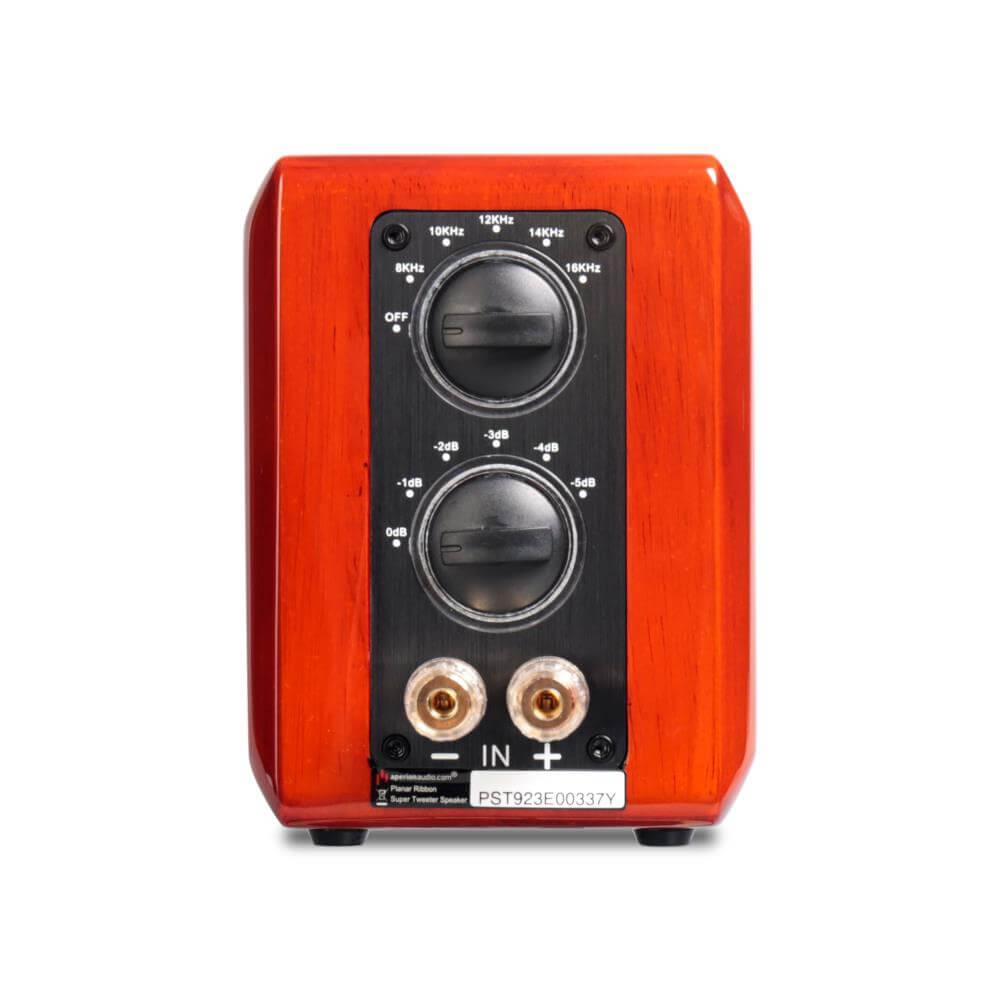

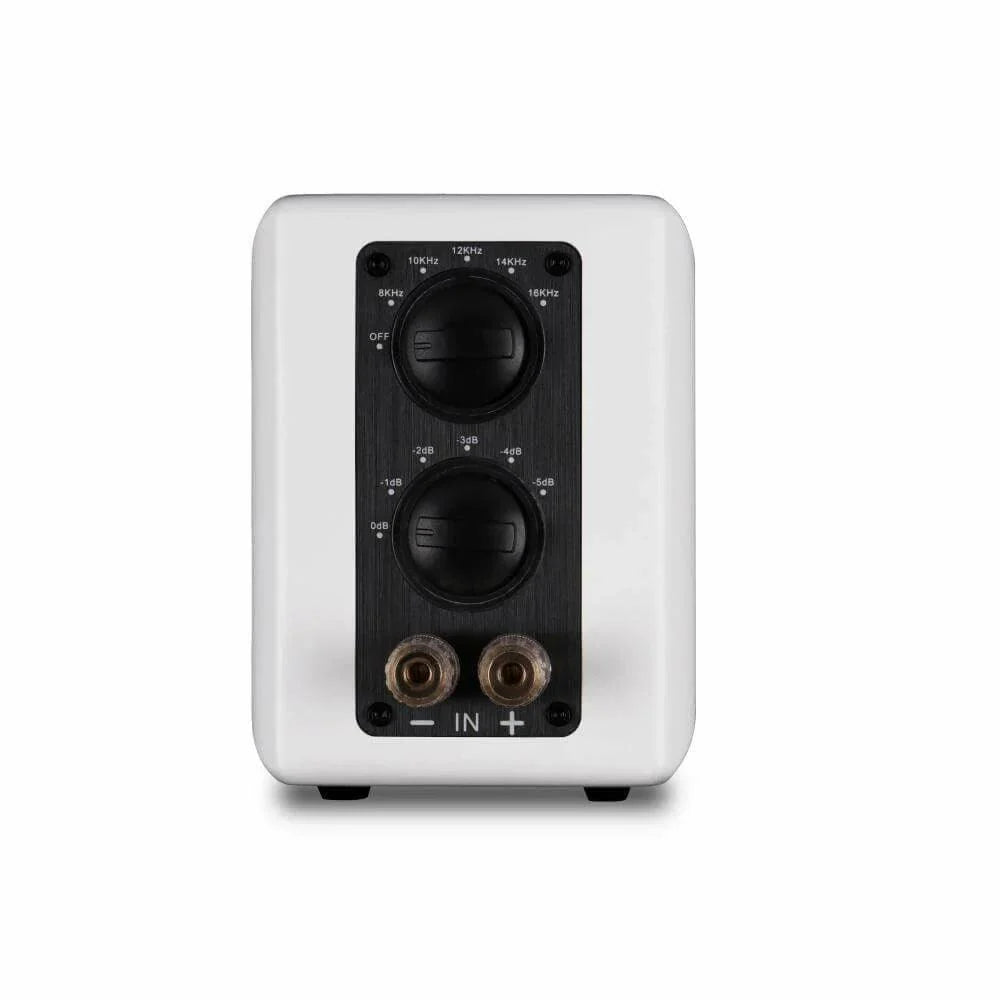

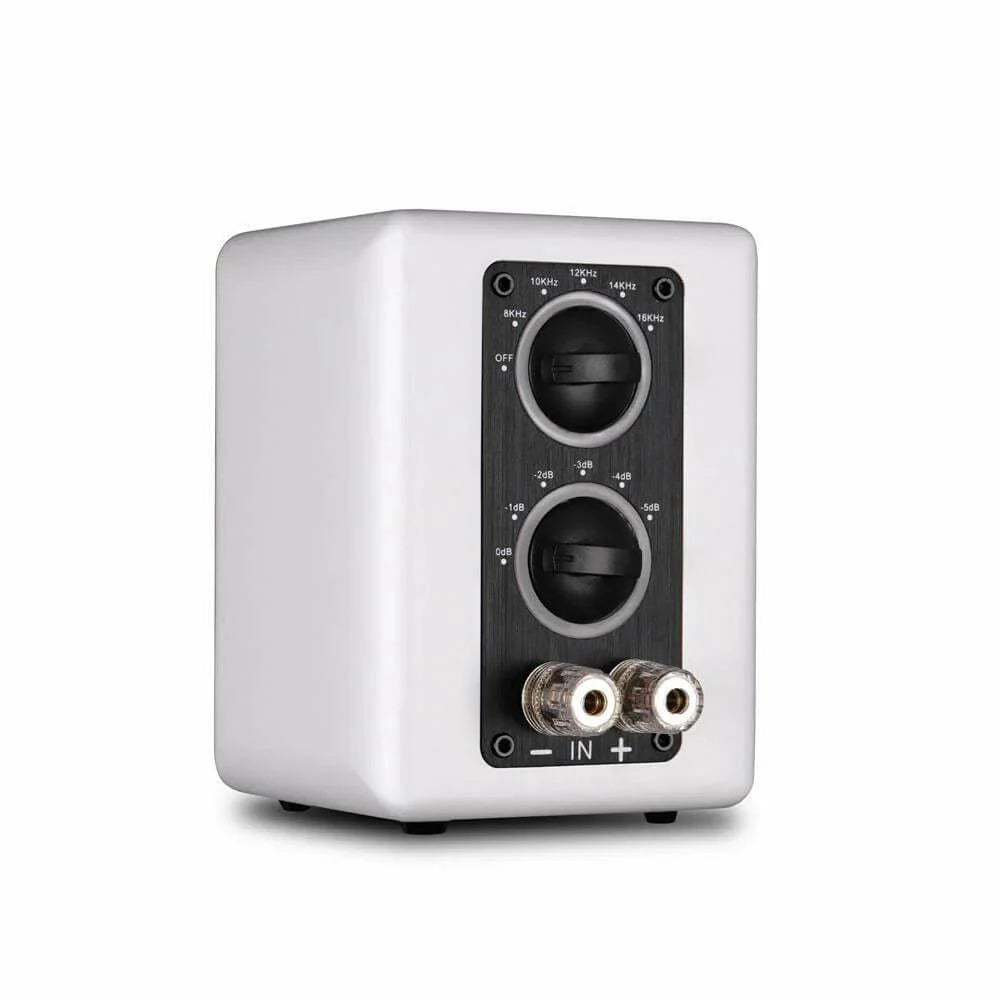

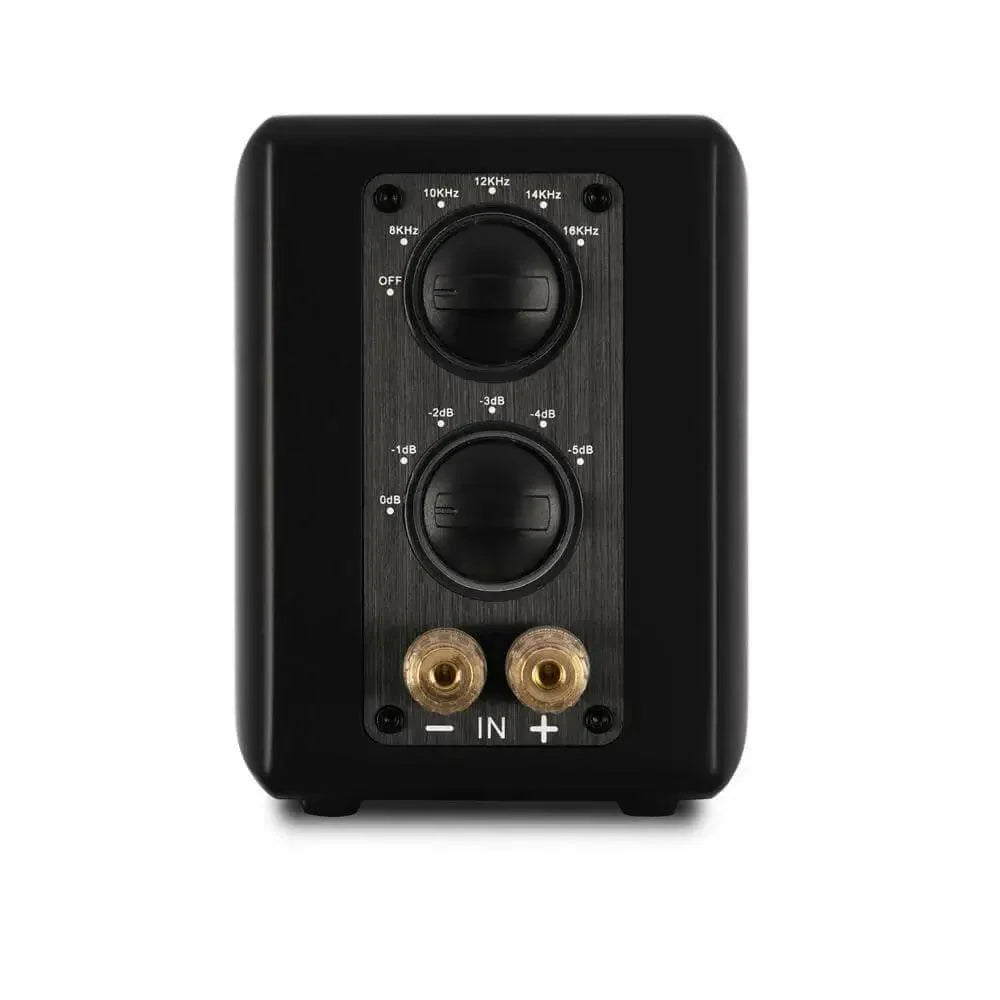

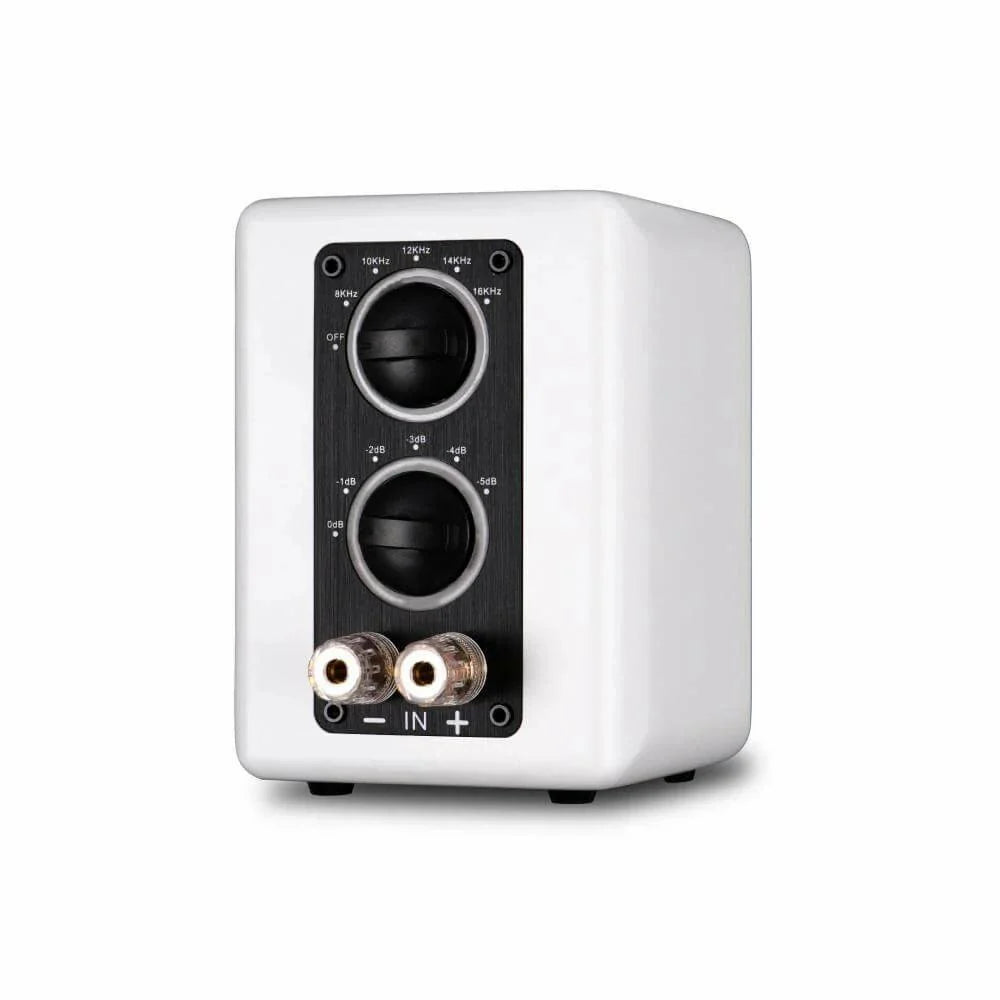

5-point Crossover + OFF

aperion-super-tweeter-5-point-crossover

Choose between 8, 10, 12, 14 or 16 kHz to set the Super Tweeter floor for the perfect blend with your speaker. The "OFF" position renders the Super Tweeter inert. The lowest setting, 8 kHz, will provide the most overlap with your existing tweeter while the highest setting, 16 kHz, will have minimal overlap, picking up at the top-end of the range. The crossover slope is 12 dB/octave.


Treble Adjust Knob

aperion-super-tweeter-treble-adjust-knob

Too much of a good things? Use the treble adjust to reduce the output of the Super Tweeter. Just flip the switch and adjust to taste, up to -5dB.


Easy Connection

aperion-planar-super-tweeter-easy-connection

The Super Tweeter shares the same binding posts as the speaker you're pairing it with. It feeds off the power your main speaker is already receiving, so no need to connect directly to an amplifier.

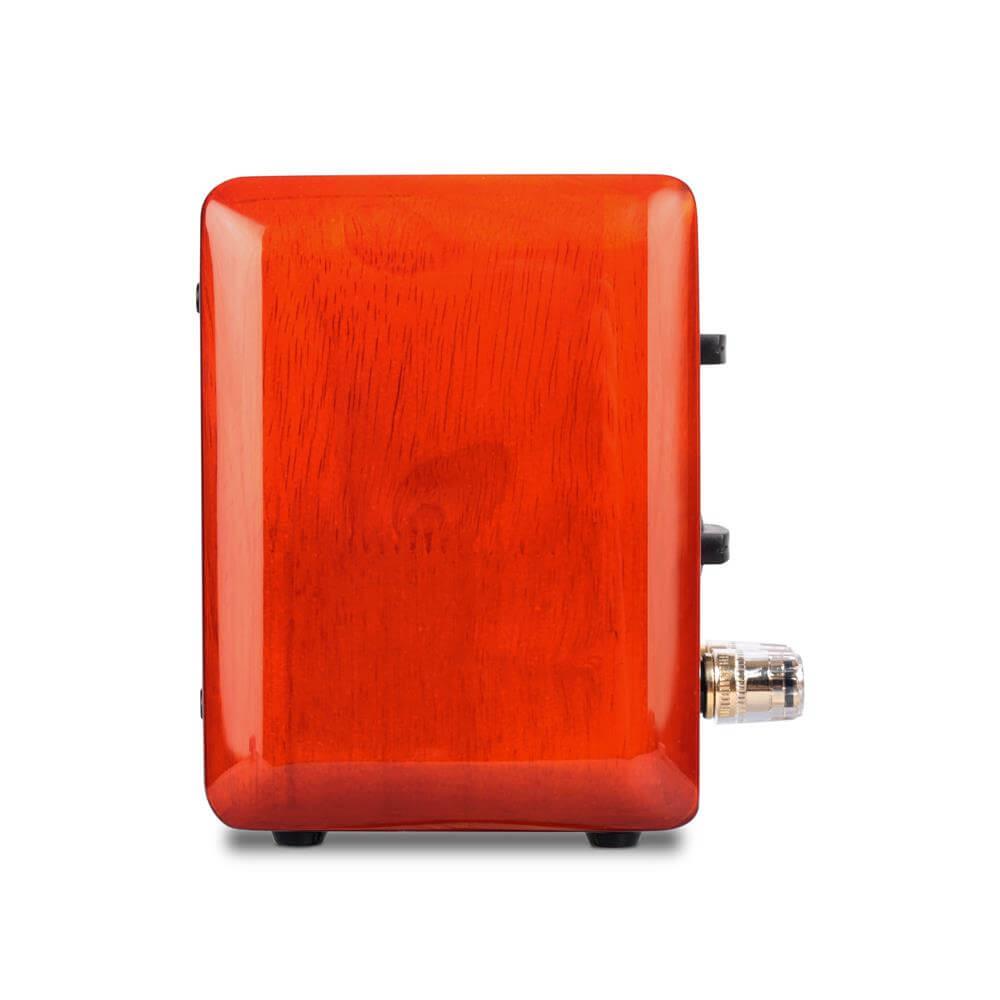

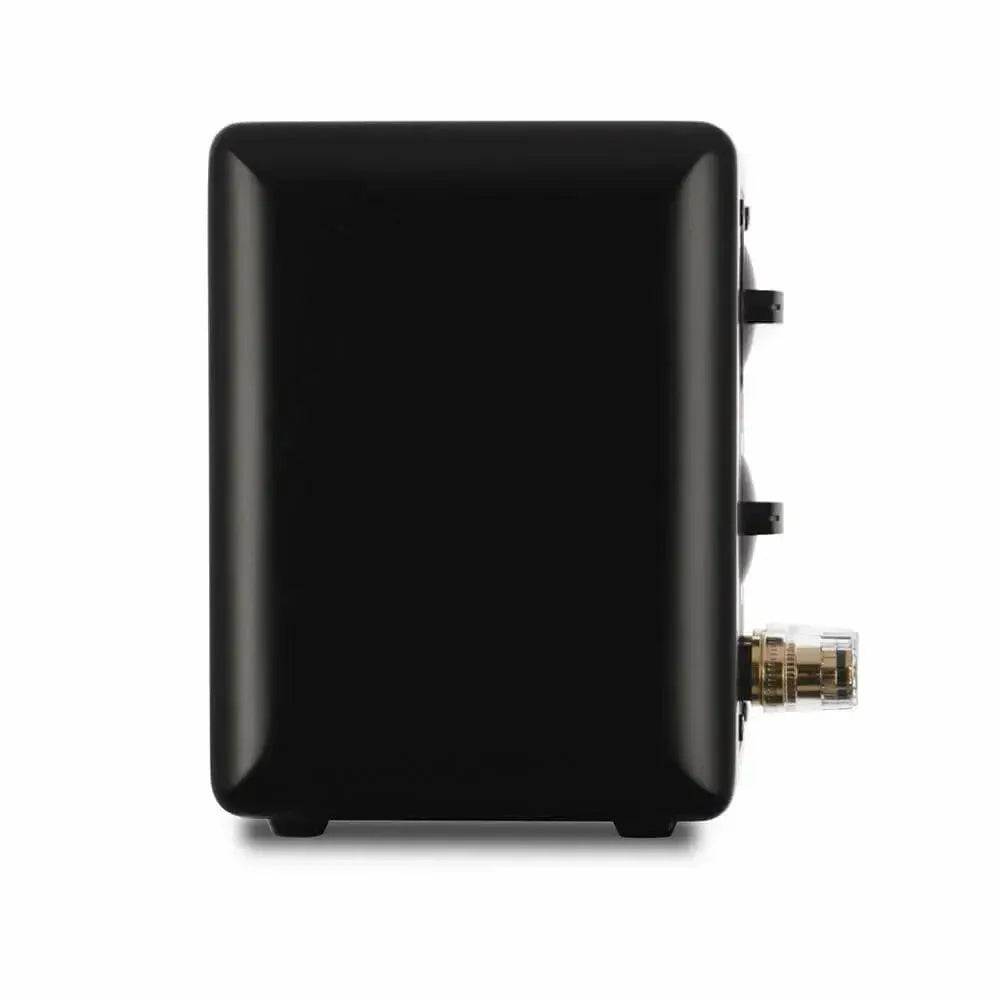

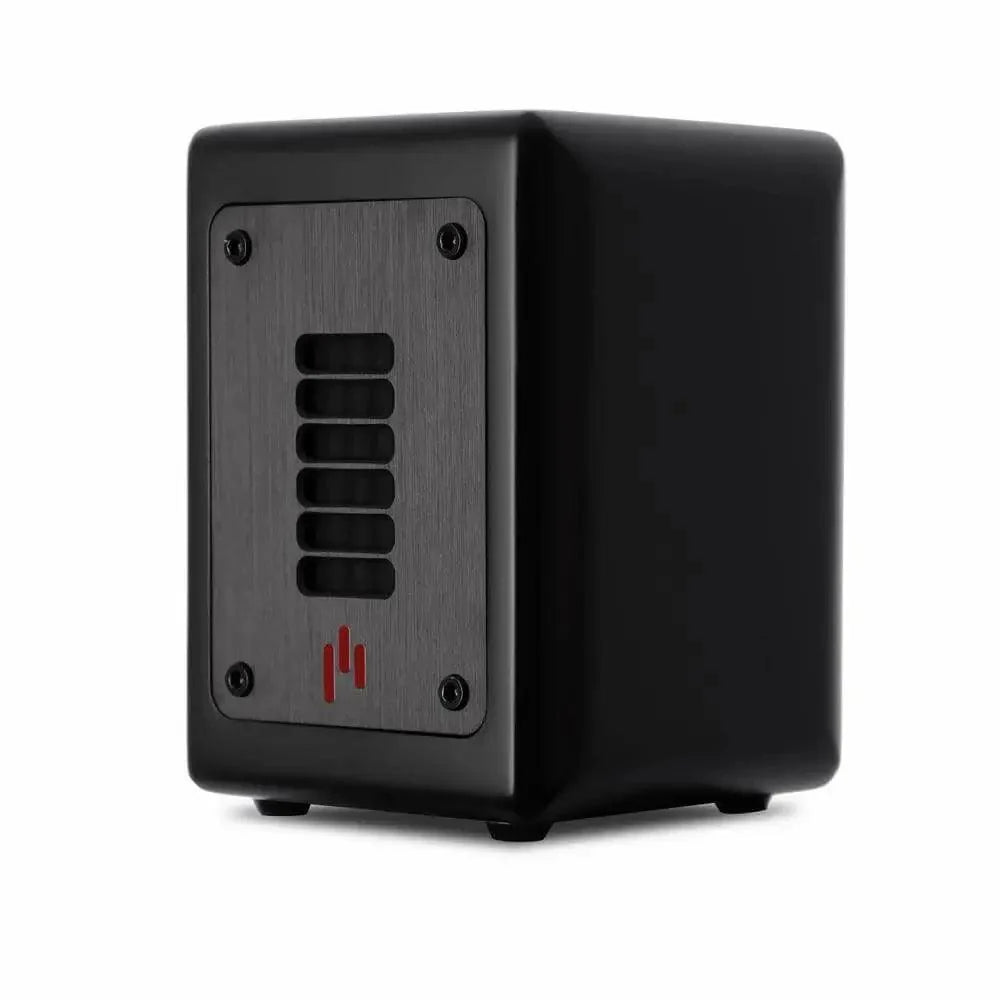

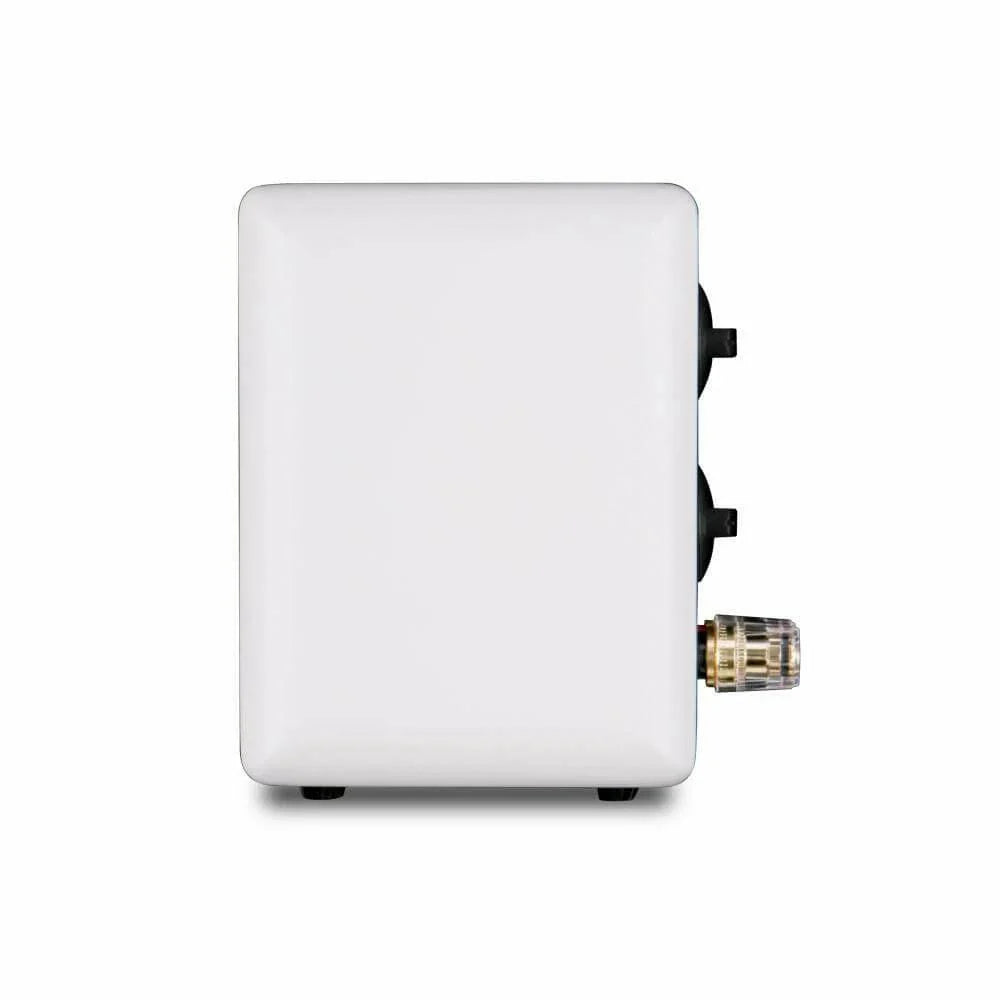

Beautifully Curved Cabinet

aperion-planar-ribbon-super-tweeter-cabinet-design

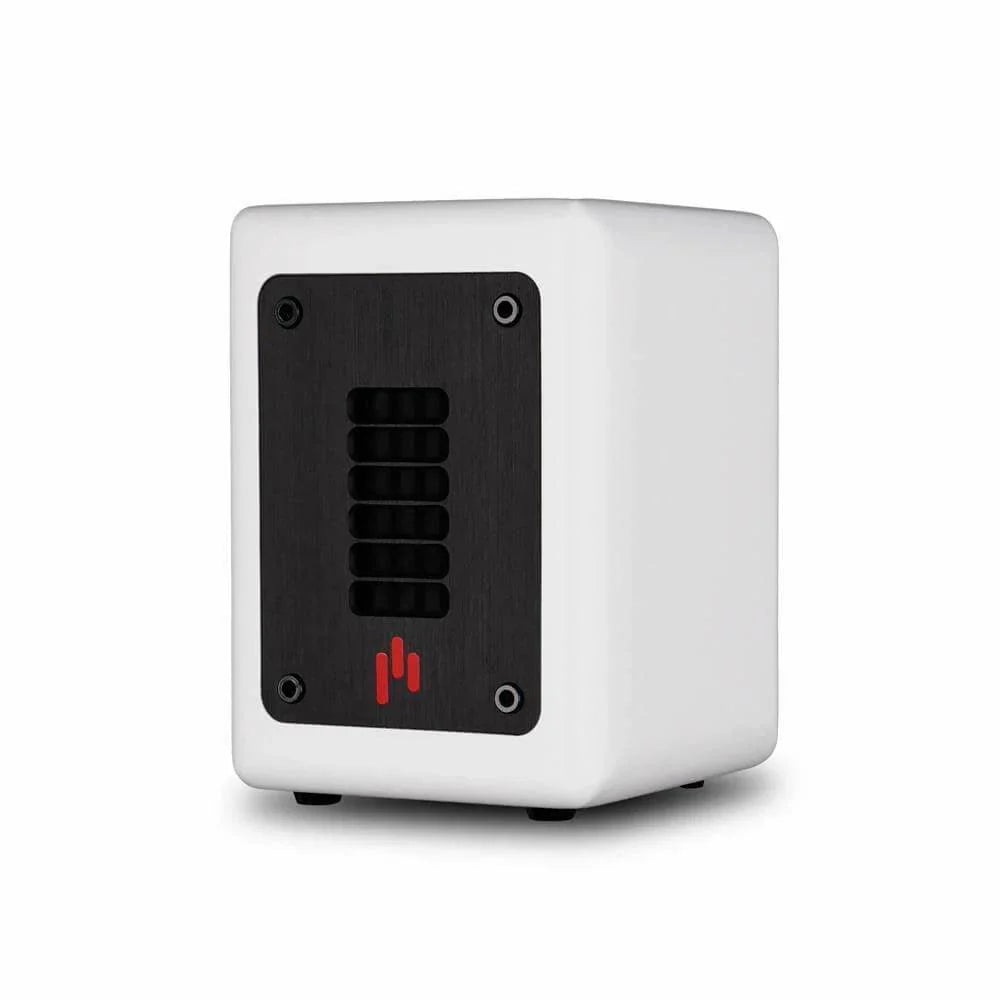

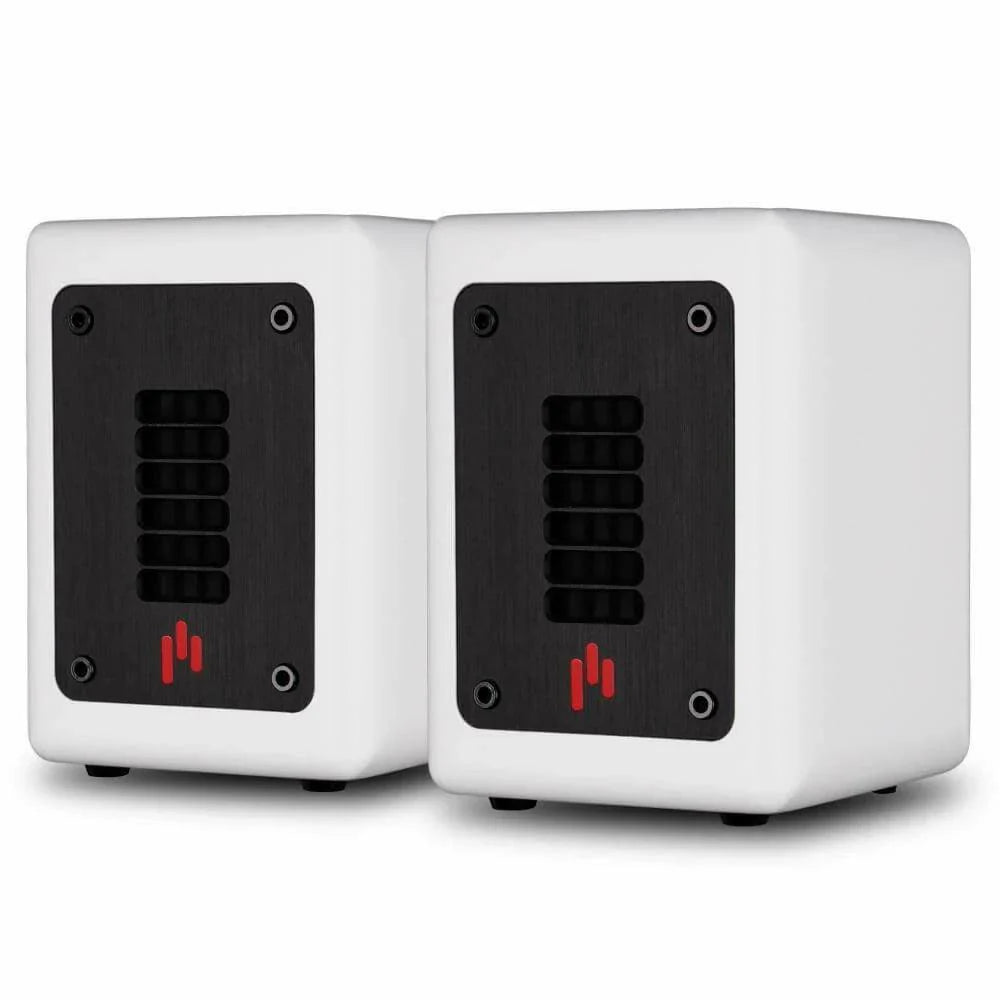

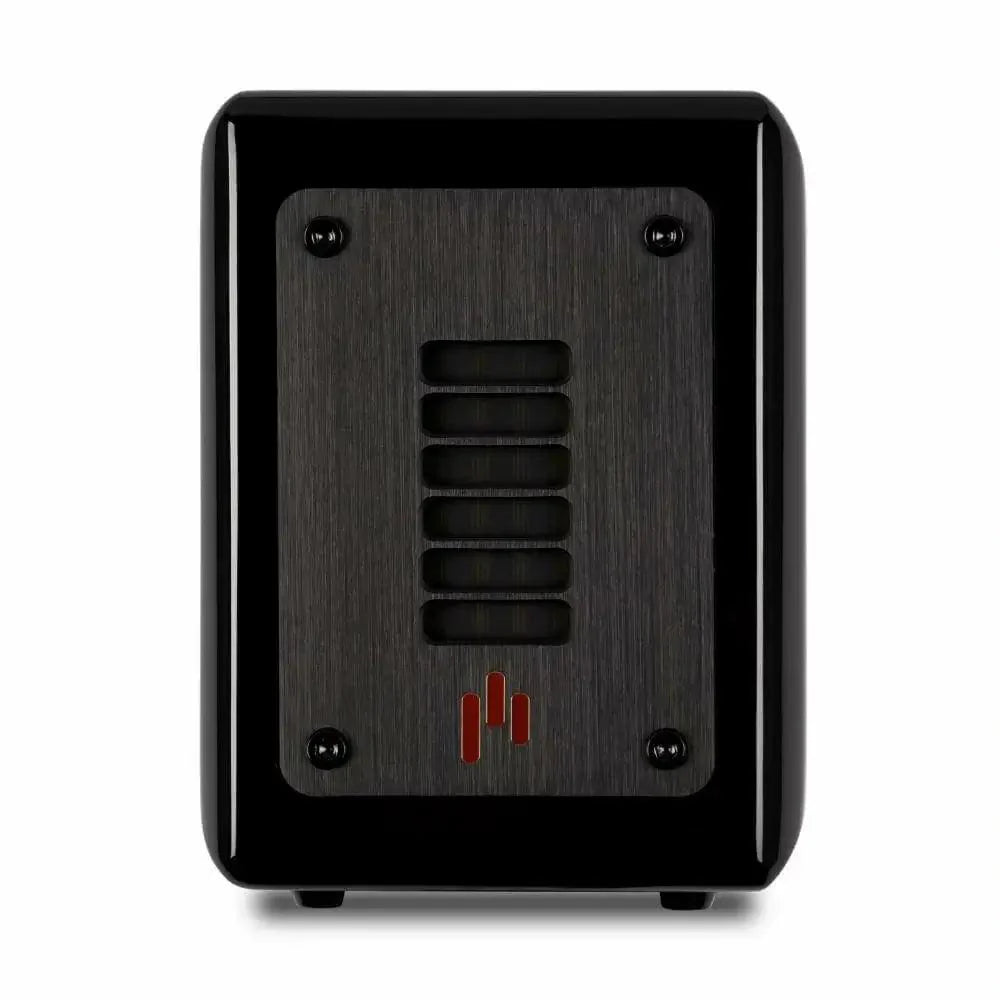

The finishing touch for every Super Tweeter Speaker is a matte black/white or piano-black lacquer that’s so right for every decor, your coffee table will be jealous.

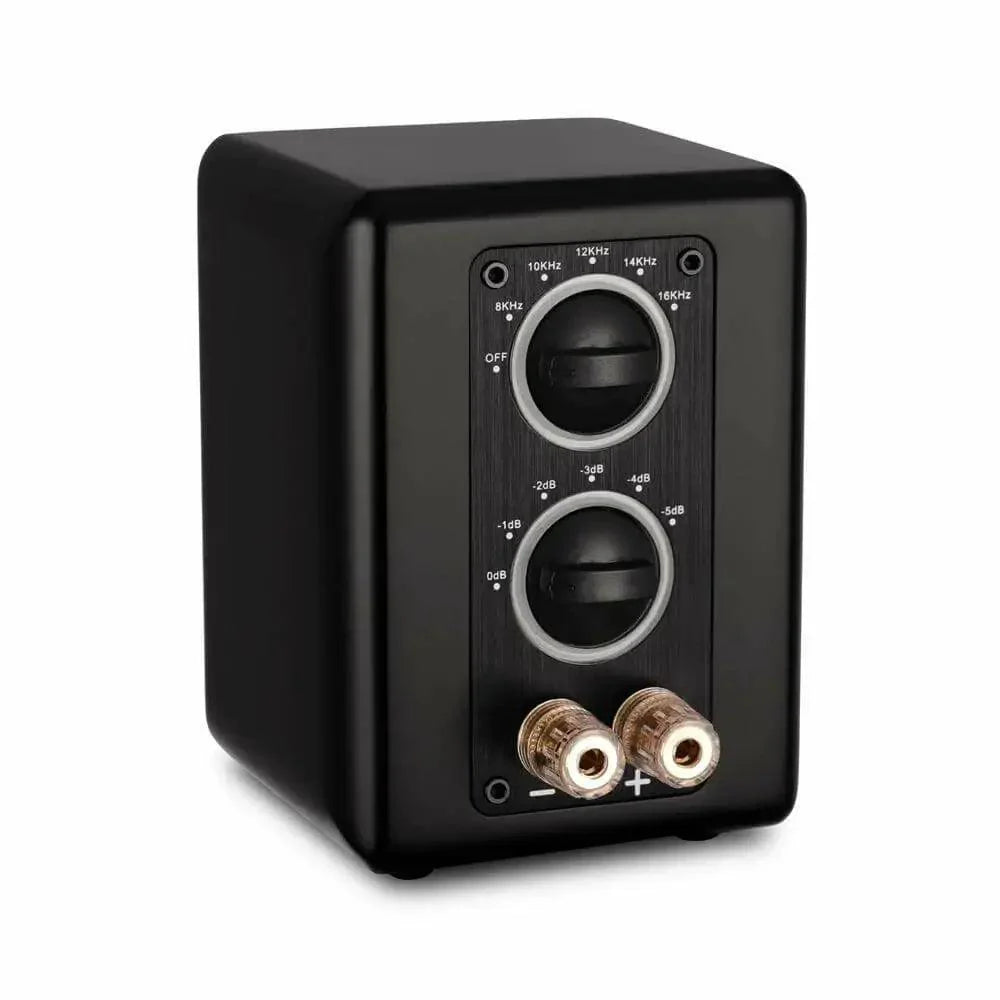

5-Way gold-plated binding posts

aperion-planar-ribbon-super-tweeter-bindingpost

The 5-way gold-plated binding posts let you connect your speakers any which way you choose: bare wire, banana plugs, spades, round pins or flat pins.

 Table, Rectangle, Eyewear, Parallel, Circle, Fashion accessory, Font, Ceiling, Transparent material, Slope

How to Connect Super Tweeter

how-to-connect-aperion-super-tweetershow-to-connect-aperion-super-tweeters

The chart below can be used to help match the Planar Ribbon Super Tweeter with your existing speaker`s sensitivity

aperion-planar-ribbon-super-tweeter-spl

Graph showing the extended frequency response of our Super Tweeter on the 14 kHz and16 kHz settings when paired with a bookshelf speaker:

aperion-super-tweeter-high-frequency-improve

 aperion-planar-ribbon-super-tweeter-gloss-oak-finish



Key Features

  • APERION High-Fidelity Planar-Magnetic Flat Ribbon Tweeter
  • Frequency Response up to 40 kHz
  • 5 Adjustable crossover points + OFF
  • Up to -5 dB Treble Adjust Knob
  • 5-way gold-plated binding posts
  • 3-year Warranty


Package Contents:

  • Planar Ribbon Super Tweeter Speakers x Two (2) Pcs
  • Manual x One (1) Pcs



Download:

Planar Ribbon Tweeter Manual


Super Tweeter Video

Super Tweeter Sensitivity Ranges:

PST Planar Ribbon Super Tweeter: 85-94 dB
