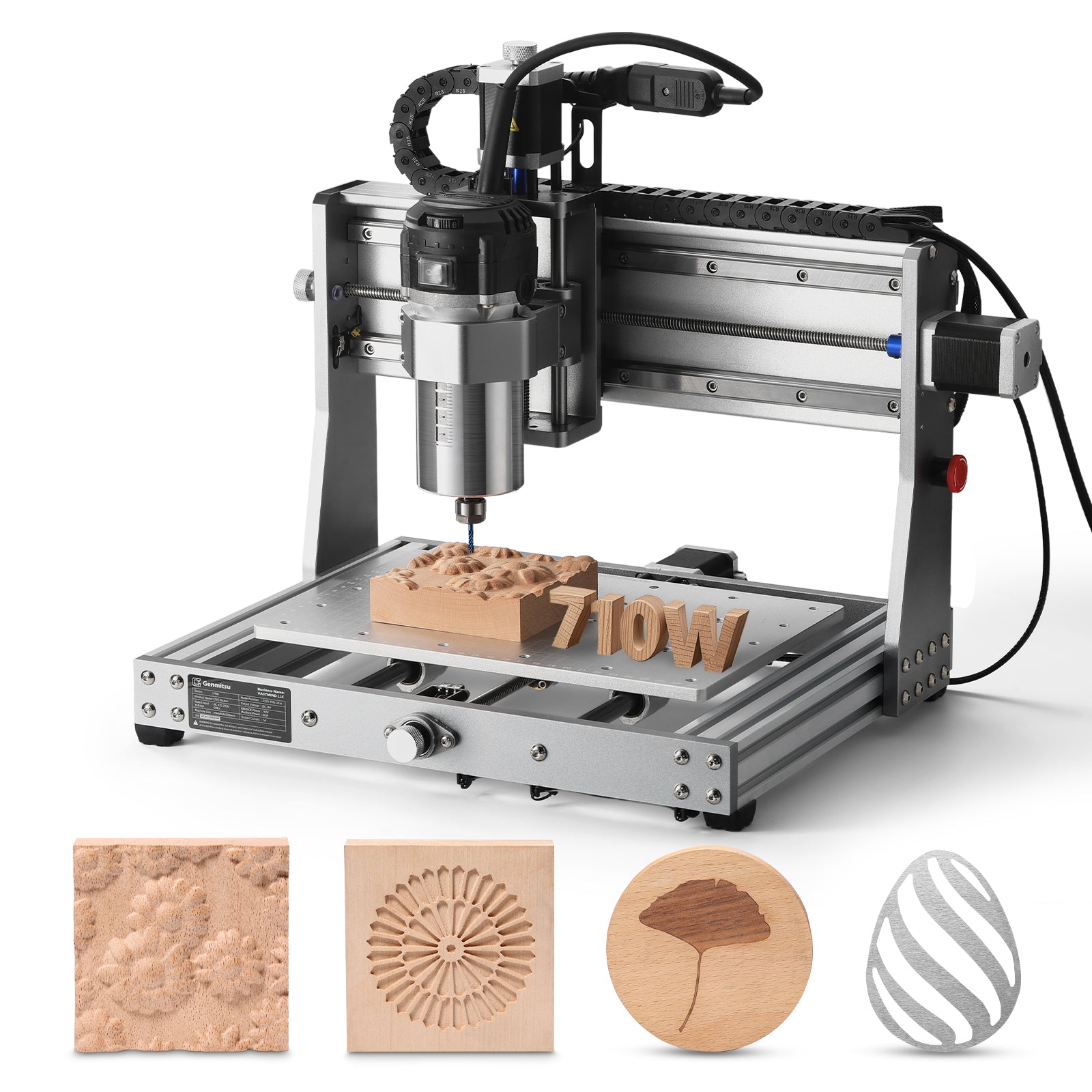

3020-PRO Ultra Desktop CNC Router, 710W Spindle for Metal Carving and Cutting
Couldn't load pickup availability
Shipping charges and delivery options are shown at checkout. Items from different locations may arrive separately.
Need details about coverage or returns for this item? Contact Techable before ordering.
Condition Specifications
The condition refers to the visual appearance of the device. Each device is thoroughly inspected and found to be in perfect working condition.
-
Excellent
Excellent condition devices will only have minimal wear that is hardly noticeable. -
Great
Great condition will show light signs of wear including scratches, scuffs, or small dings. Wear will be minimal but may be visible from an arm’s length distance. -
Good
Good condition with average signs of wear including scratches, scuffs, or dings that will be visible within an arm’s length distance. -
Fair
Fair condition with heavy signs of wear may include scratches, scuffs, screen delamination, dings, or dents that will be visible from more than an arm’s length distance. -
Support
Please note we cannot send individual pictures of machines. Feel free to message us at support@techable.com with any questions. -
Warranty
Each device comes with a 90-Day warranty on all parts. Additional warranty options are provided by SafeTech Warranty.
All-Metal Frame

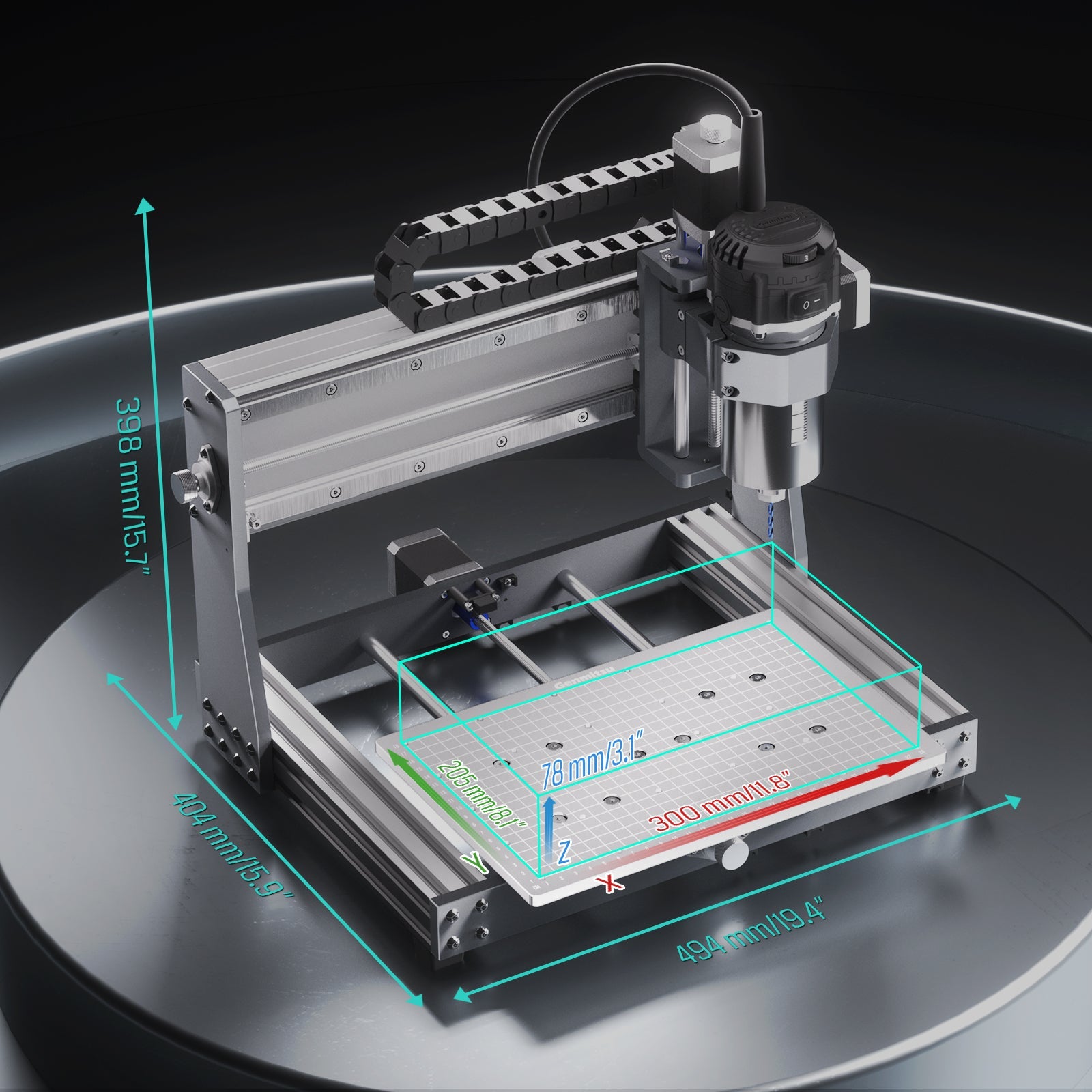

Built with solid all-metal construction, the 3020-PRO Ultra CNC router features the X-axis with dual linear rails and a lead screw, while the Z-axis uses 10mm and the Y-axis 12mm polished rods with T8 trapezoidal lead screws. Enclosed mold materials and a reinforced X-axis backplate ensure exceptional stability and precise performance
Unmatched Cutting Power

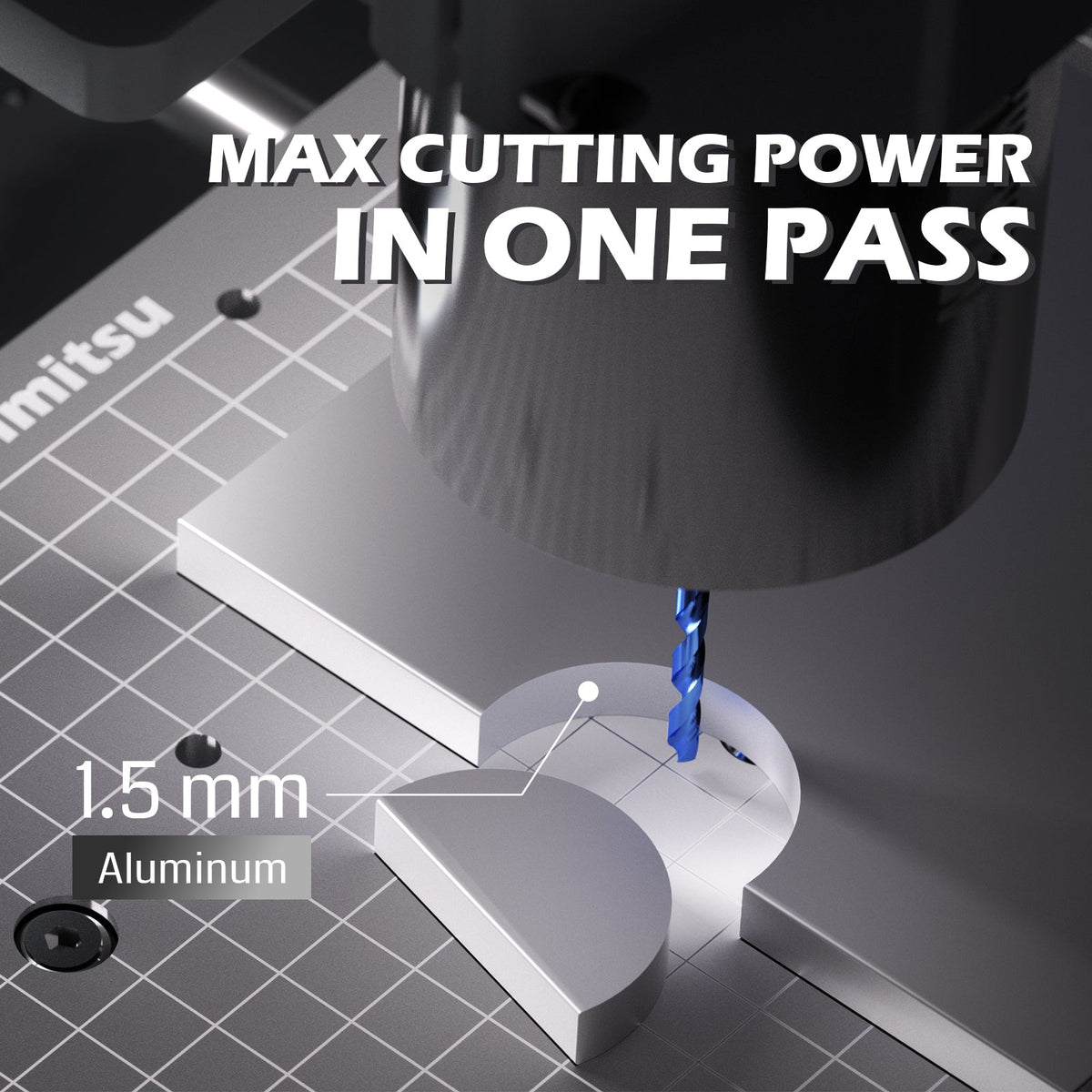

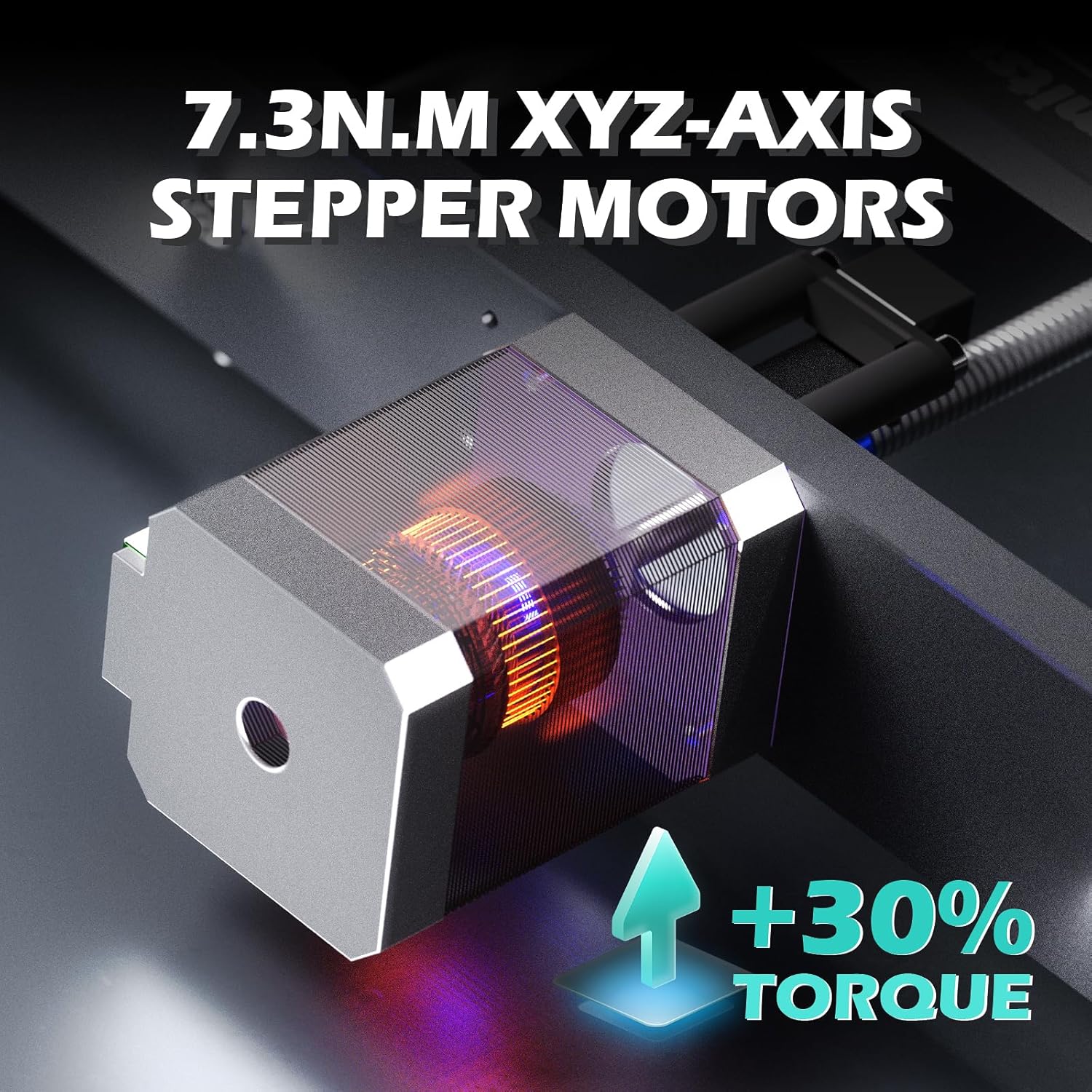

The XYZ-axis of this milling machine are equipped with powerful 60mm stepper motors, delivering an impressive 7.3 Nm of torque. Achieve deeper cuts in aluminum up to 1.5mm in one pass, making tough jobs faster and easier.

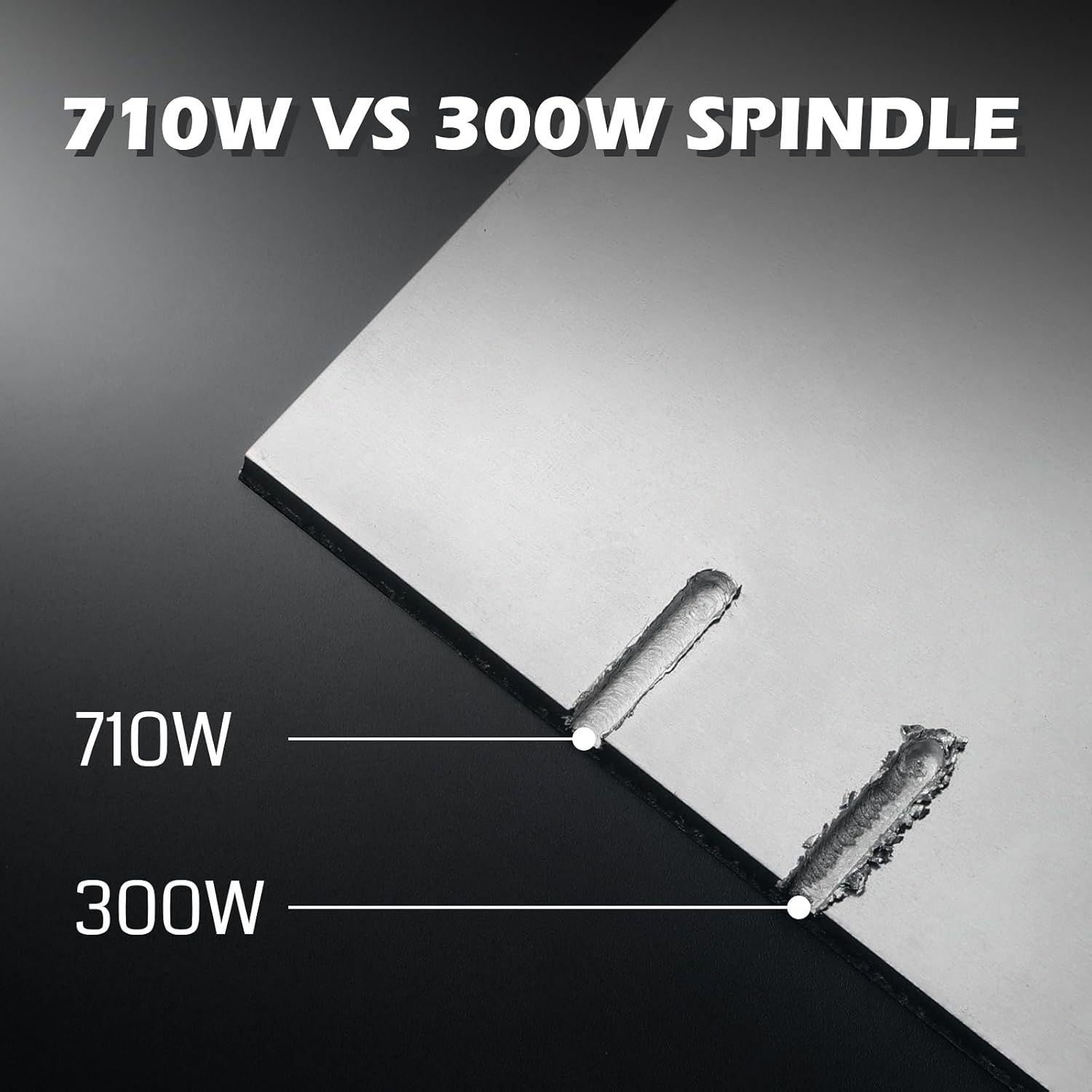

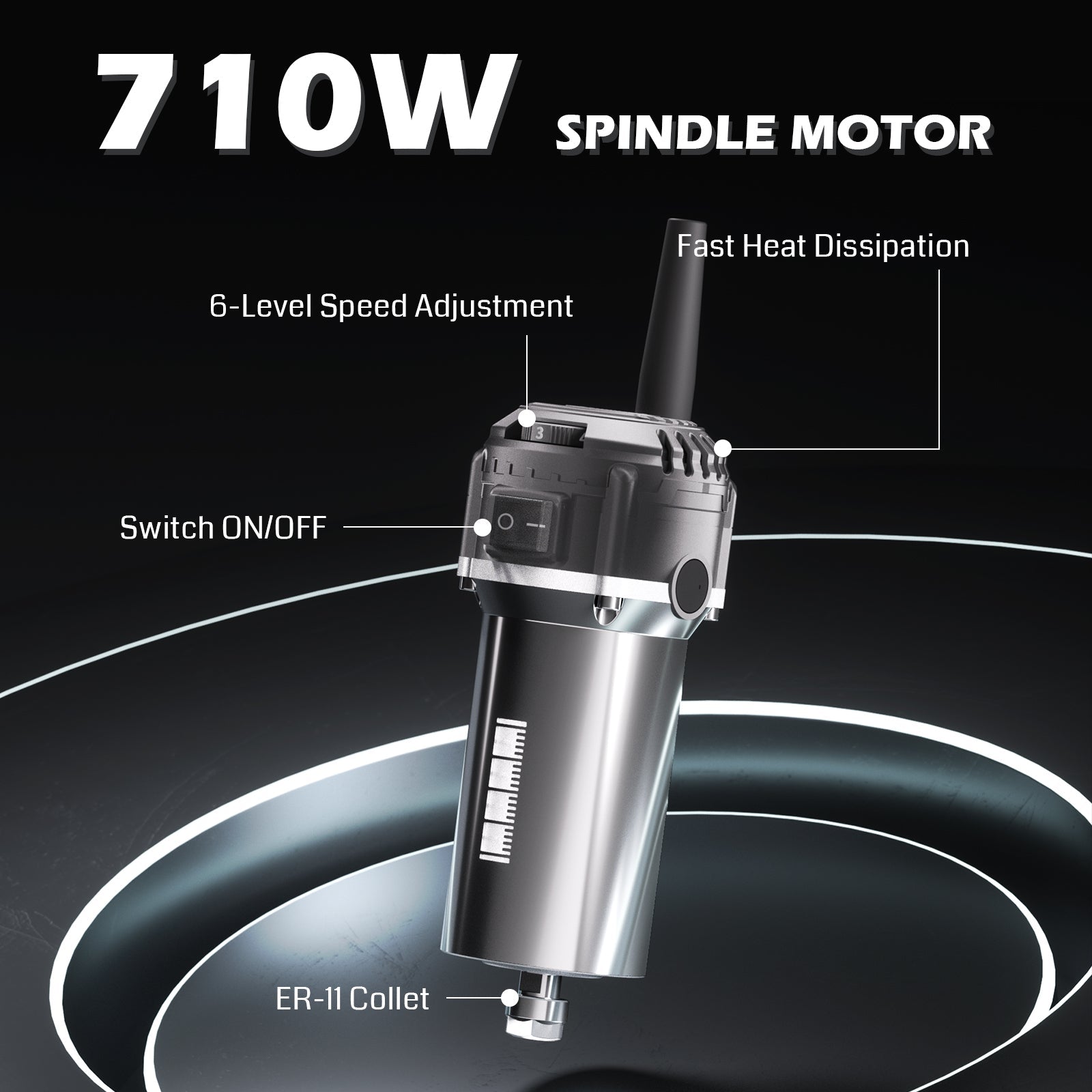

710W Spindle
Whether you're working with solid wood, metal, acrylic, carbon fiber or more, the upgraded spindle with a 1/8” ER11 collet has you covered. The adjustable speed range (6500-30000 RPM) with 6-speed settings and constant torque control delivers consistent performance.
Simpler & Safer

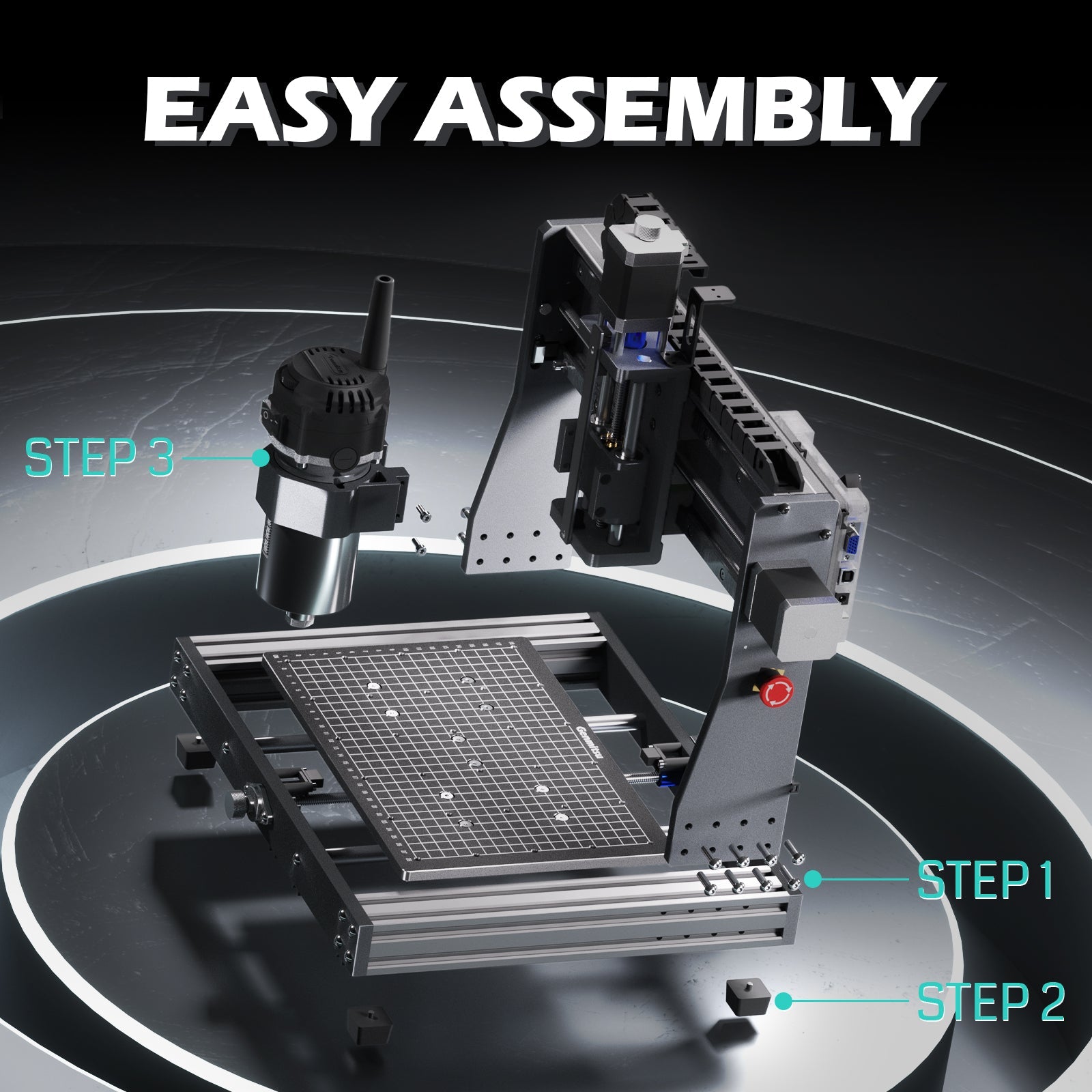

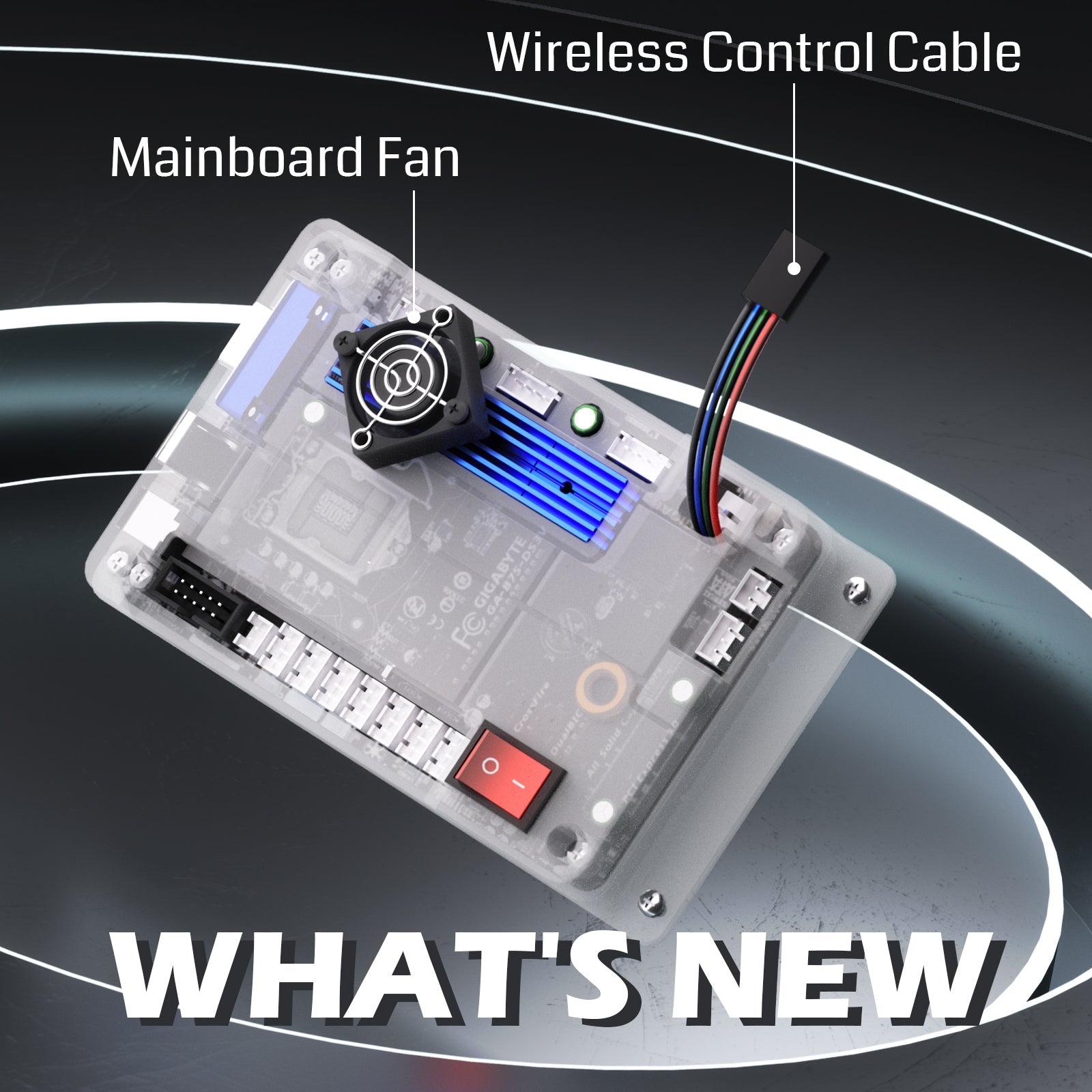

Eliminates the heavy power box and incorporates a cooling fan with the motherboard, integration is now more streamlined and secure than ever. The machine features a modular assembly design, allowing you to complete the installation in just two simple steps.
Versatile Compatibility

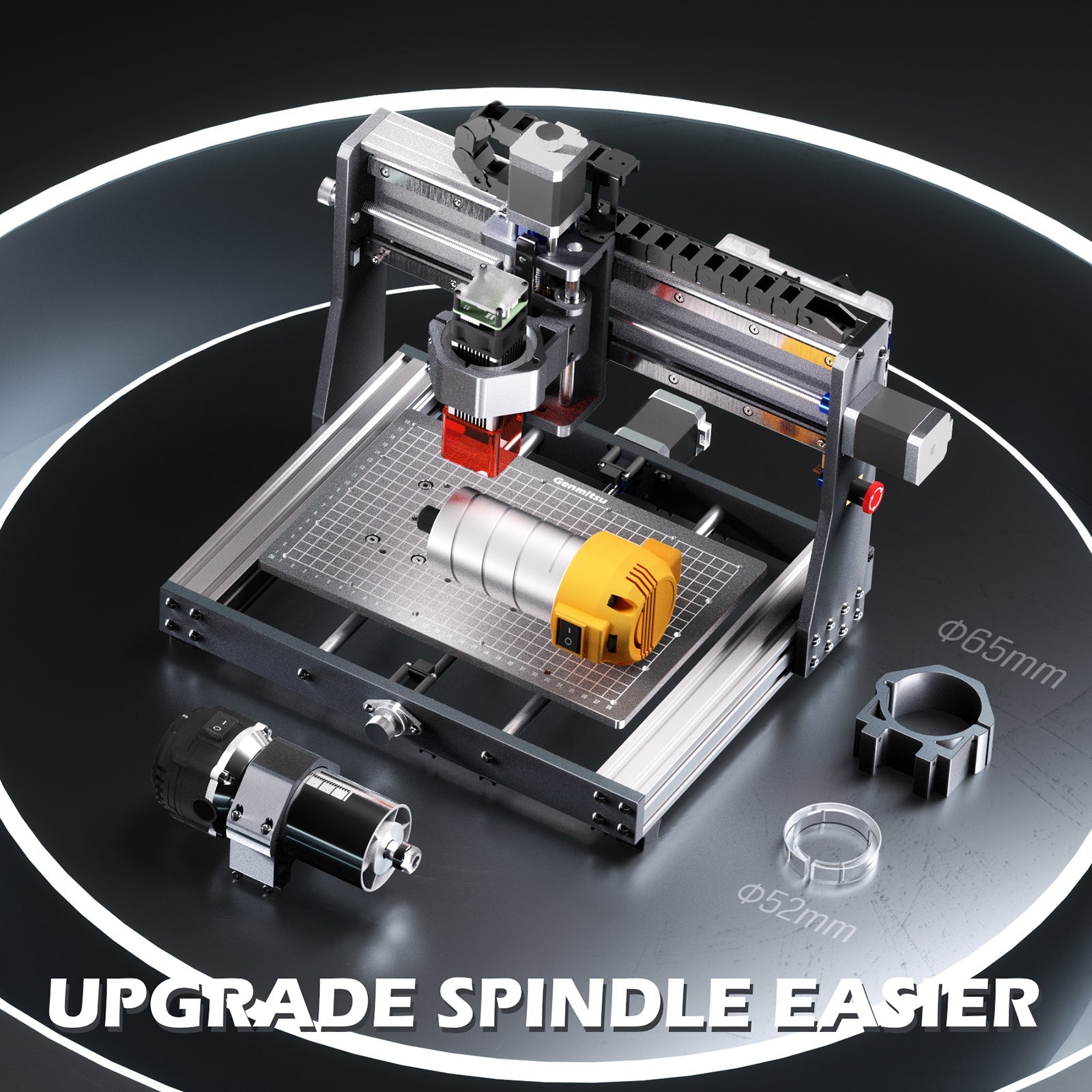

Easily switch between different spindles and laser modules with the included Φ65mm spindle holder and Φ52mm adapter. Also compatible with Φ69mm spindle brackets (sold separately), giving you the flexibility to expand your machine’s capabilities effortlessly.
Wide Appilcation

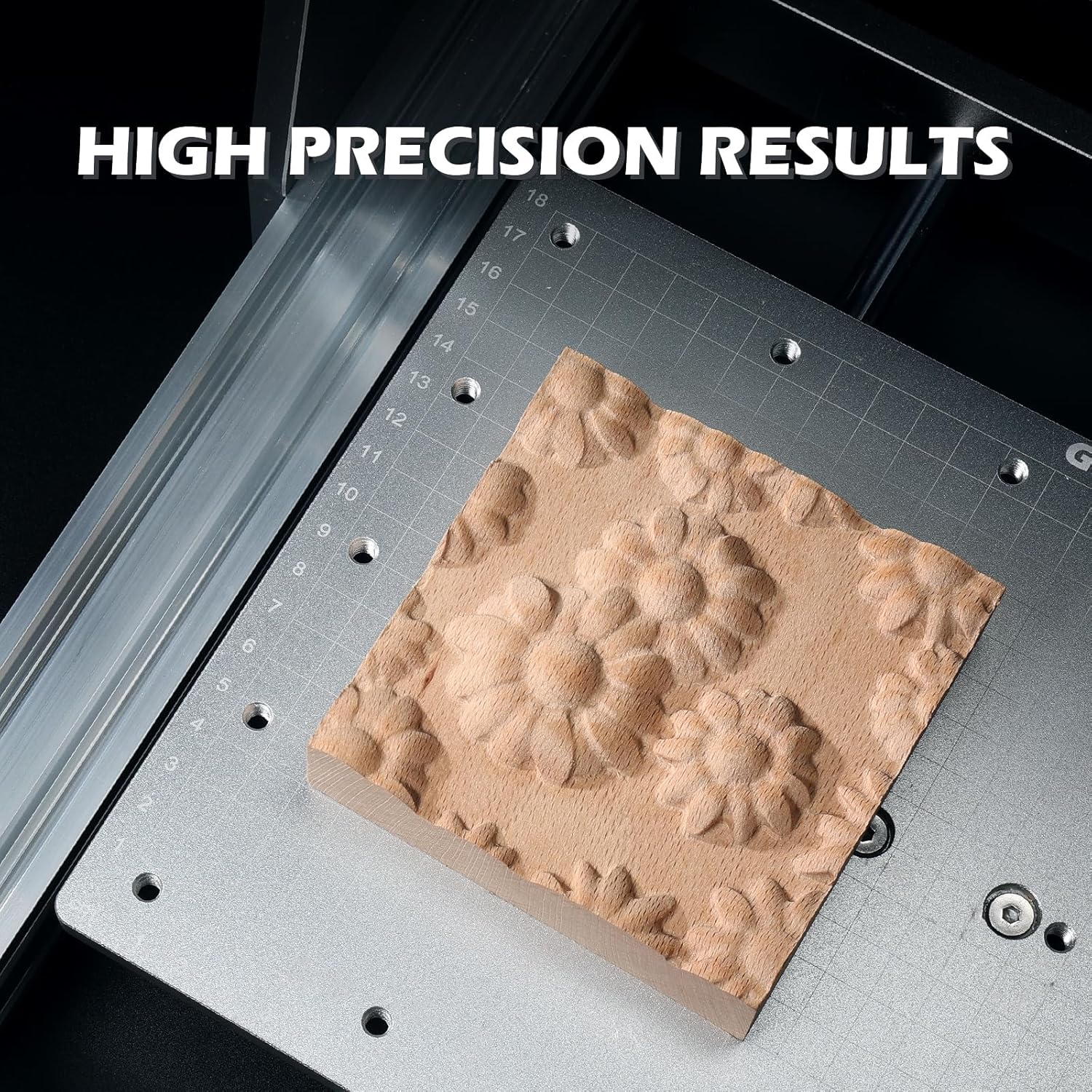

The 3020-PRO Ultra is designed to engrave a wide range of materials, including wood, aluminum, brass, carbon fiber, and acrylic. Equipped with a powerful 710W spindle, it delivers enhanced precision and performance, making it ideal for various applications and user needs.
