EXP PRO Summit 100 Solar Panel (monocrystalline)- 100 Watt

The EXP PRO Summit 100 Watt Solar Panel is the most effective folding 100-watt panel on the market, measuring just 16” x 14” x 1” when folded. After extensive testing, we confidently assert that you won't find a better option, especially for the price.

Compact and highly portable, the EXP PRO 100 Watt Solar Panel is engineered to efficiently charge the EXP240PRO or any other battery bank.

Our extensive testing has confirmed that this is the most versatile solar panel solution for charging any power station.  The panel outputs 18-22 volts, a higher voltage essential for efficient battery charging in various conditions. The 100W monocrystalline solar cells boast a high conversion efficiency of 23.5%.

The EXP PRO Solar Panel is waterproof and high-temperature resistant, ensuring durability in diverse environments.

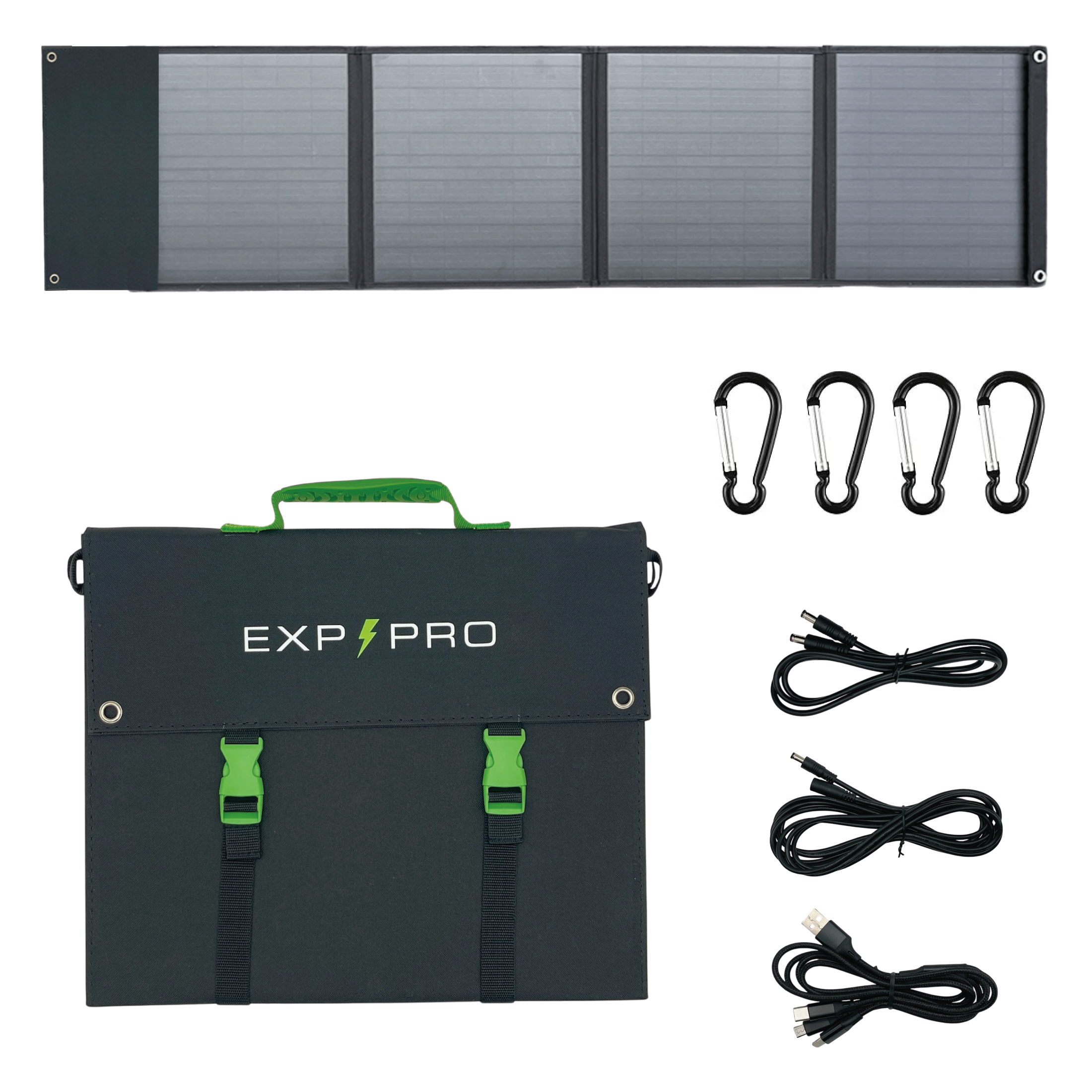

 Contents:

1) 100-Watt EXP PRO folding solar panel

2) 6' Power cord (connection from solar panel to EXP240PRO battery) consisting      of 1 ea 6' DC charging cord with Small Anderson plug.

3) If not ordering with 240PRO, it will also includes converter cord that converts      Small Anderson Plug to 5.5x2.1 common barrel connector jack. See solar panel        images.

Instructions:

1. Open the solar panel and place it on a clean, dry, flat surface in direct sunlight.
2.  Plug the solar charge cord into the “Small Anderson IN” port on the battery or use the common barrel connector attachment. The LED screen will show the rate of charging (amps).
3. Remove battery or other device from the solar panel once charging is complete.

Expect longer charge times using the solar panel compared to the AC or DC charge cords as sun conditions will vary greatly. Estimated Charge Times (full charge) in optimal conditions with panel in correct orientation in full sun:

EXP48PRO - 3.5 hours

EXP96PRO - 4.5 hours

EXP240PRO - 10 hours

It is very important to keep the solar panel pointed directly at the sun.  If the angle is off by a few degrees, the efficiency can be greatly reduced.

Specifications:

Weight: 6.4 pounds

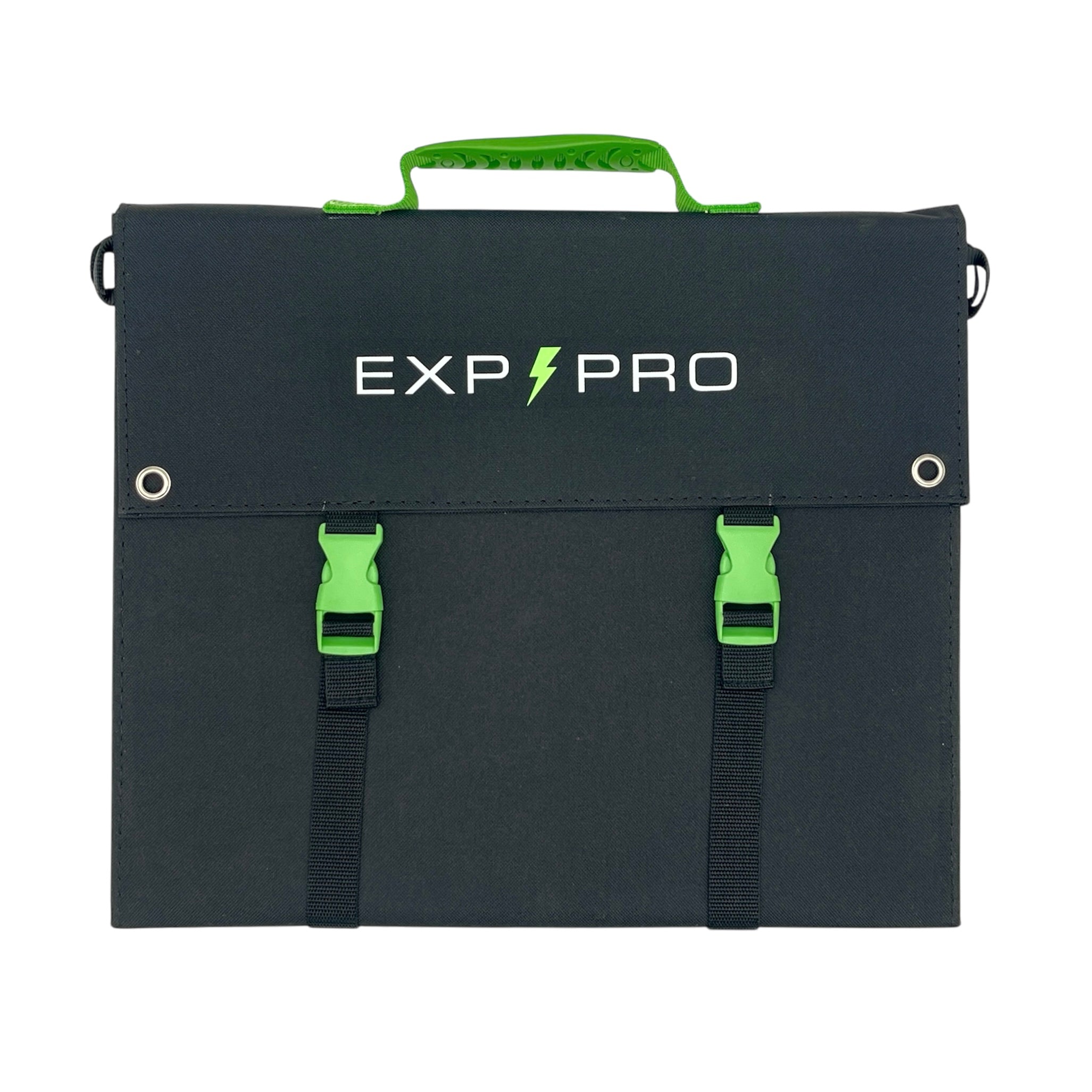

Panel Folded Dimensions: 14.2” x 15.9” x 1”

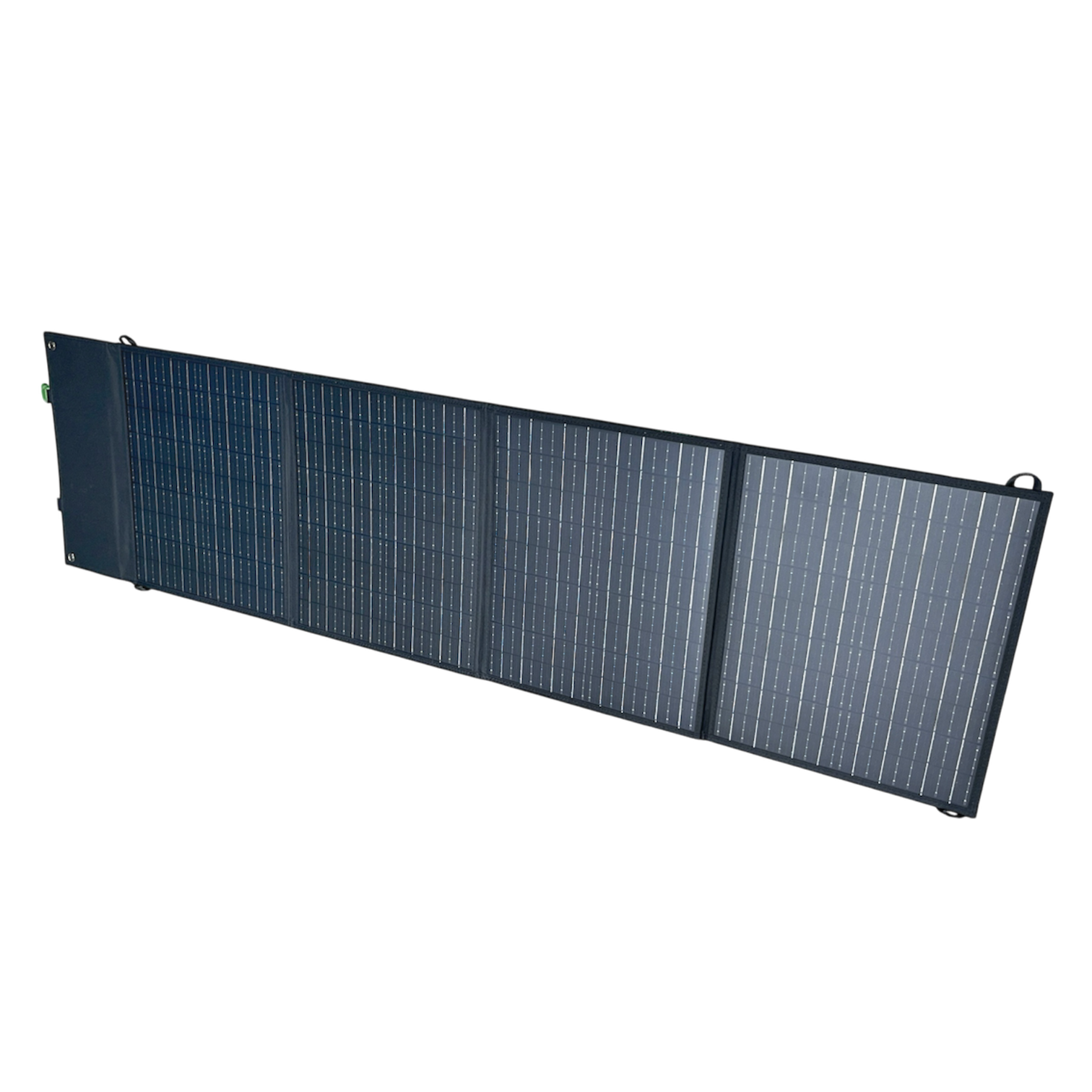

Panel Open Dimensions: 74.8” x 15.9” x .2”

Solar Cell Type: Monocrystalline (high efficiency)

DC interface: 20V, 3.3A -7.0A

Power: 100 Watt

Warranty: 24 months

Cleaning:

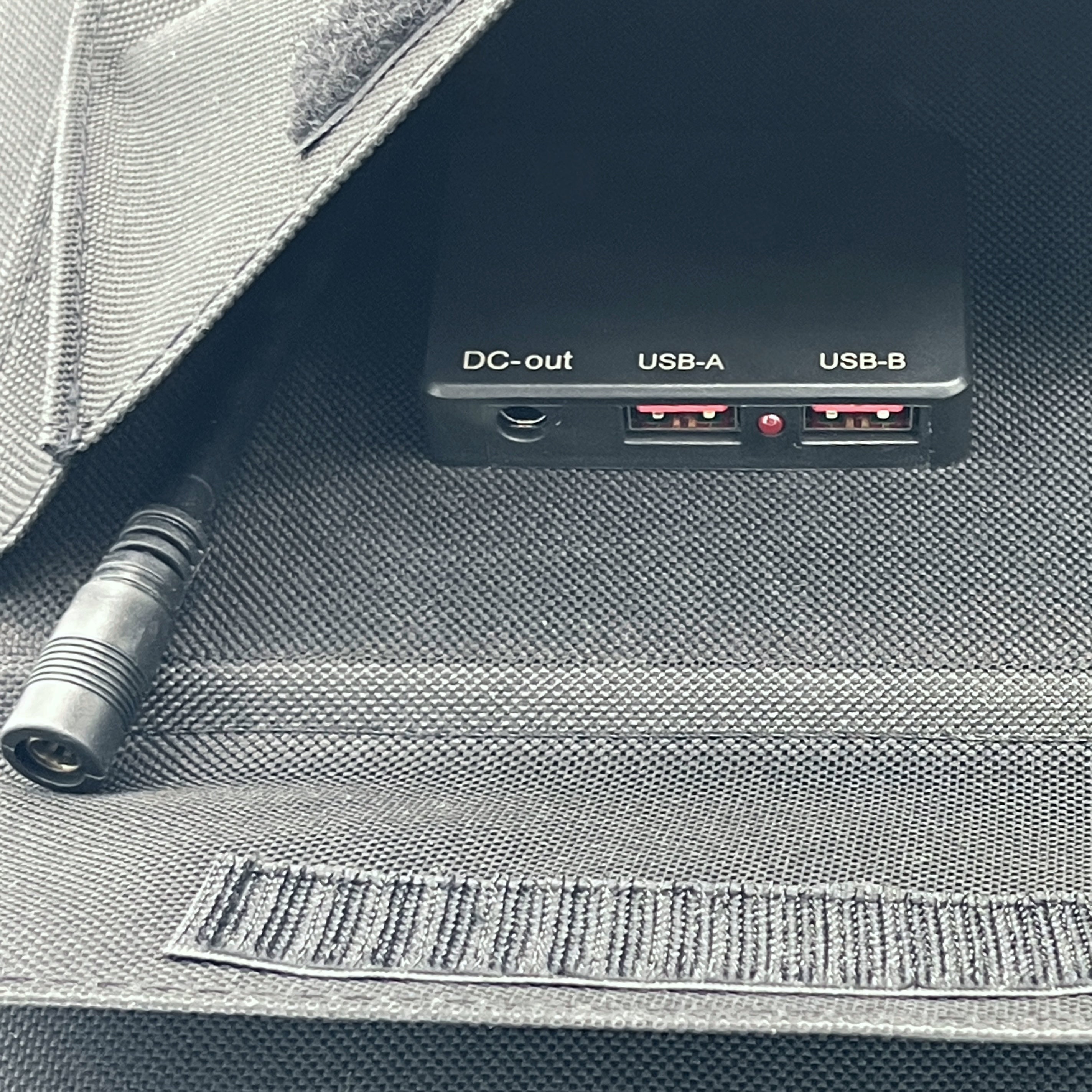

When needed, wipe the panel with  a damp, soft cloth.  A dirty panel can also reduce efficiency.  Panels are waterproof, but avoid water contact with the control box in the pouch.
